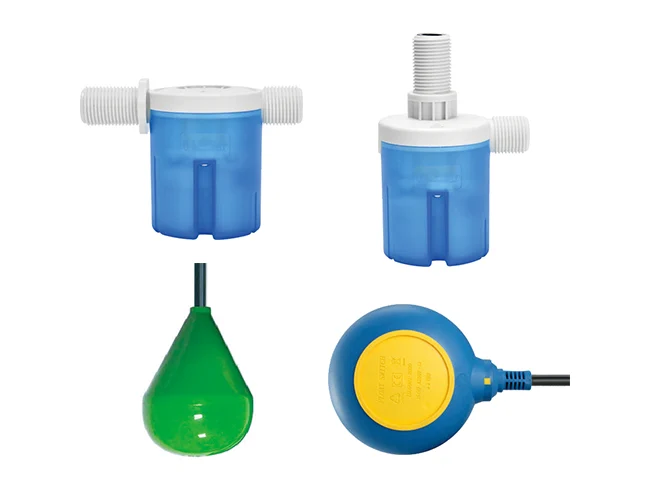

Float Switch – Simple Structure, Reliable Operation

The float switch is a sensing device that controls switch actions based on liquid level changes. It is widely used in water tanks, sewage treatment, industrial liquid level monitoring, chemical storage tanks, cooling systems, and other applications. It achieves precise monitoring of the liquid level by using a float to drive the internal contact switch as the liquid level rises and falls, and can automatically control the start and stop of the water pump or emit high and low liquid level alarm signals based on set values. The float switch supports multi-point control and can set multiple liquid level control points according to different needs, making it suitable for industrial automation control systems with strict liquid level requirements. Its installation method is flexible, allowing for horizontal or vertical installation, and it does not require an external power source, enabling long-term stable operation in various environments.

Specification
Videos

Specification

FLO-1–10, BF-2, BF-1
FLO-11–26
FLO-27, FLO–28
FLO-29, FLO–30

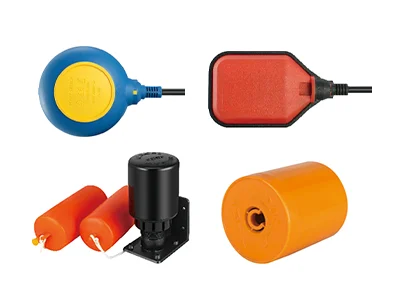

FLO-1–10, BF-2, BF-1

Read MoreRead Less

Table 1: FLO-1–10, BF-2, BF-1
Voltage	AC 125V/250V
Rated Current	AC 16 (4A)
Frequency	50/60Hz
Temperature	90 °C
Protection Grade	IP68

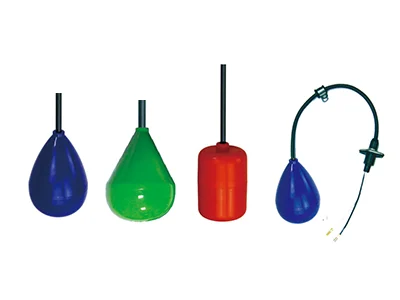

FLO-11–26

Read MoreRead Less

Table 2: FLO-11–26
Model	FLO-11	FLO-12	FLO-13	FLO-14	FLO-15	FLO-16	FLO-17	FLO-18	FLO-19	FLO-20	FLO-21	FLO-22	FLO-23	FLO-24	FLO-25	FLO-26
Switch type	Micro switch					Micro switch/Mercury switch				Mercury switch	Micro switch		Mercury switch	Reed switch	3/4/5-Pin	PC
Sensitivity	45° angle / 80° angle					15° angle / 10° angle				10° Angle	45° angle			5 mm	700Ω (20V AC)	PF 1/2"
A-V	5A (3A) 250V AC			16A (4A)/22A (8A) 250V AC	5A (3A) 250 VAC					3A 250V AC	16A (4A)/22A (8A) 250V AC	16A/22A 250V AC	3A/16A 250V AC	1A 250V AC	304SS	2"
Size (mm)	Φ 80 × 115	Φ 48 × 62	Φ 68 × 95	Φ 80 × 115	Φ 98 × 157	Φ 68 × 95	Φ 98 × 115	Φ 68 × 95	Φ 80 × 115	Φ 48 × 62	Φ 73 × 100	Φ 80 × 115	Φ 80 × 115	Φ 28 × 28 × 36	Φ 100 × 67	Φ 100 × 67

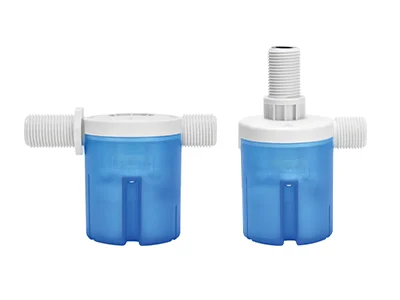

FLO-27, FLO–28

Read MoreRead Less

Table 3: FLO-27, FLO–28
Model	FLO-27	FLO-28
Size	1/2", 3/4", 1"	1/2", 3/4", 1"
Installation	Horizontal	Vertical
Temperature	≤ 120 °C	≤ 120 °C
Work pressure	0.01–1.0 Mpa 0.1–10 Bar 1.5–150 PSI	0.01–1.0 Mpa 0.1–10 Bar 1.5–150 PSI

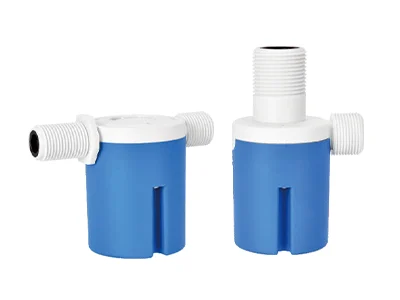

FLO-29, FLO–30

Read MoreRead Less

Table 4: FLO-29, FLO–30
Model	FLO-29	FLO-30
Size	1/2", 3/4", 1"	1/2", 3/4"
Installation	Horizontal	Vertical
Temperature	≤ 80 °C	≤ 80 °C
Work pressure	0.01–1.0 Mpa 0.1–10 Bar 1.5–150 PSI	0.01–1.0 Mpa 0.1–10 Bar 1.5–150 PSI
