Butt Weld Tee

Butt Weld Fittings

Butt Weld Tee

Butt Weld Tee Fittings for Converging Or Diverging Flow

Butt weld tees, also known as T-shaped pipes or branch pipes, are commonly used pipe fittings in piping systems where fluid or gas needs to be diverted. They are connected to the main pipeline and two branch pipelines by welding, allowing the fluid to be diverted from the main pipeline to the two branch pipelines, or to converge from the two branch pipelines into the main pipeline. This simplifies the layout of the piping system and improves its efficiency and performance.

Specifications
Functions
Video

Specification

Download Data Sheet

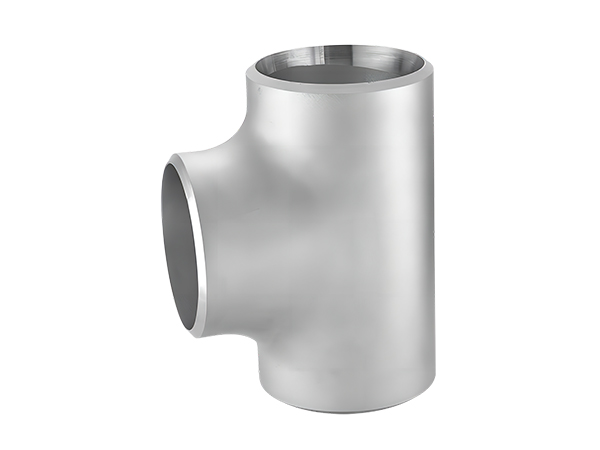

Butt weld equal tee
Butt weld reducing tee
45° butt weld equal lateral tee
45° butt weld reducing lateral tee

It connects pipes of the same diameter to achieve fluid diversion or convergence in different directions.
The branch direction of the pipe is perpendicular to the main pipe, allowing the fluid to make a vertical turn between the branch pipe and the main pipe.
The wall thickness range is SCH5S-XXS. For seamless tee fittings, the size range is 1/2''–24'' (DN15–DN600), and for welded tee fittings, the size range is 1/2''–48'' (DN15–DN1200).
It is connected to the pipeline by welding, and has high strength and sealing performance, and can withstand high pressure and temperature.
It is made of stainless steel, duplex steel, or special alloy steel, and has corrosion resistance, and can resist corrosion media such as oxidation, acidity, alkalinity, and salt solution.

Installation Dimensional Drawing

Specifications

Read MoreRead Less

Table 1: Butt Weld Equal Tee Dimensions
Nominal Diameter		Outer Diameter (mm)	Distance from Center to End Face (mm)		Theoretical Weight (kg/pc)
DN	NPS	D₁×D₂	C	M	sch5S	sch10S	sch40S/STD	sch40	sch80S/XS	sch80
20×20	3/4×3/4	25×25	29	29	0.07	0.10	0.13	0.13	0.16	0.16
20×20	3/4×3/4	26.7×26.7	29	29	0.08	0.11	0.15	0.15	0.18	0.18
25×25	1×1	32×32	38	38	0.11	0.19	0.23	0.25	0.3	0.3
25×25	1×1	33.4×33.4	38	38	0.12	0.20	0.25	024	0.32	0.32
32×32	1-1/4×1-1/4	38×38	48	48	0.19	0.36	0.42	0.40	0.63	0.63
32×32	1-1/4×1-1/4	42.2×42.2	48	48	0.2	0.39	0.52	0.42	0.73	0.73
40×40	1-1/2×1-1/2	45×45	57	57	0.35	0.59	0.78	0.72	1.08	1.08
40×40	1-1/2×1-1/2	48.3×48.3	57	57	0.45	0.69	0.88	0.82	1.18	1.18
50×50	2×2	57×57	64	64	0.49	1.03	1.15	1.04	1.65	1.65
50×50	2×2	60.3×60.3	64	64	0.5	1.05	1.18	1.06	1.67	1.67
50×20	2×3/4	76×76	64	44	0.38	0.8	0.90	0.90	1.27	1.27
65×65	2-1/2×2-1/2	73.0×73.0	76	76	0.87	1.21	2.10	2.10	2.8	2.80
65×25	2-1/2×1	89×89	76	57	0.70	1.07	1.81	1.81	2.08	2.08
80×32	3×1-1/4	25×25	86	70	1.00	1.45	2.60	2.60	3.60	3.60
90×90	3-1/2×3-1/2	101.6×101.6	95	95	1.33	1.92	3.61	3.61	5.08	5.08
100×100	4×4	108×108	105	105	1.66	2.41	4.75	4.75	6.75	6.75
100×100	4×4	114.3×114.3	105	105	1.75	2.54	5.01	5.01	7.12	7.12
125×125	5×5	133×133	124	124	3.37	4.14	7.98	7.98	11.6	11.6
125×100	5×4	141.3×141.3	124	117	3.03	3.73	7.20	7.2	10.4	10.4
150×125	6×5	159×159	143	137	3.84	4.73	9.88	9.88	15.2	15.2
150×125	6×5	168.3×168.3	143	137	4.13	5.08	10.6	10.6	16.3	16.3
200×150	8×6	219×219	178	168	7.17	9.74	21.1	21.1	32.8	32.8
250×150	10×6	273×273	216	194	11.4	15.0	31.4	31.4	42.7	50.7
300×250	12×10	325×325	254	241	20.4	23.6	49.2	53.3	65.6	90.3
300×250	12×10	323.9×323.9	254	241	20.3	23.4	49.1	23.1	65.2	90.2
350×300	14×12	377×377	279	270	25.8	31.1	62.1	72.5	82.7	124
350×300	14×12	355.6×355.6	279	270	24.2	29.2	58.3	68.2	77.7	116
400×350	16×14	426×426	305	305	32.0	36.8	73.6	98.1	97.8	179
400×350	16×14	406.4×406.4	305	305	30.4	34.9	70.1	93.4	92.9	162
450×400	18×16	478×478	343	330	41.0	46.8	93.3	342	144	140
450×400	18×16	457×457	343	330	39.0	44.5	88.9	325	118	133
500×450	20×18	529×529	381	368	57.9	67.1	115	462	154	183
500×450	20×18	508×508	381	368	55.4	64.2	110	441	147	175
550×550	22×22	559×559	419	419	73.5	85.2	146	635	195	–
600×600	24×24	630×630	432	432	96.0	110	165	797	220	303
600×600	24×24	610×610	432	432	93.9	107	161	779	215	296
650×650	26×26	660×660	495	495	–	–	206	–	274	–
650×600	26×24	660×610	495	483	–	–	197	–	263	–
700×700	28×28	720×720	521	521	–	–	232	–	300	–
700×700	28×28	711×711	521	521	–	–	229	–	305	–
750×750	30×30	762×762	559	559	176	200	264	–	352	–
800×800	32×32	820×820	597	597	–	–	303	–	405	–
800×800	32×32	813×813	597	597	–	–	302	–	402	–
850×850	34×34	864×864	635	635	–	–	341	626	415	–
900×900	36×36	920×920	673	673	–	–	648	786	543	–
900×900	36×36	914×914	673	673	–	–	639	767	511	–

It connects pipes of different diameters and achieves fluid diversion in different directions due to the smaller diameter of the branch pipe.
The branch direction of the pipe is perpendicular to the main pipe, allowing the fluid to make a vertical turn between the branch pipe and the main pipe.
The wall thickness range is SCH5S-XXS. For seamless tee fittings, the size range is 1/2''–24'' (DN15–DN600). For welded tee fittings, the size range is 1/2''–48'' (DN15–DN1200).
It is connected to the pipeline by welding, and has high strength and sealing performance, and can withstand high pressure and temperature.
It is made of stainless steel, duplex steel, or special alloy steel, and has corrosion resistance, and can resist corrosion media such as oxidation, acidity, alkalinity, and salt solution.

Installation Dimensional Drawing

Butt weld reducing tee installation dimension drawing

Specifications

Read MoreRead Less

Table 2: Butt Weld Reducing Tee Dimensions
Nominal Diameter		Outer Diameter (mm)	Distance from Center to End Face (mm)		Theoretical Weight (kg/pc)
DN	NPS	D₁×D₂	C	M	sch5S	sch10S	sch40S/STD	sch40	sch80S/XS	sch80
20×15	3/4×1/2	25×18	29	29	0.06	0.09	0.12	813	0.15	0.15
20×15	3/4×1/2	26.7×21.3	29	29	0.07	0.10	0.13	0.23	0.16	0.16
25×20	1×3/4	32×25	38	38	0.1	0.18	0.22	0.21	0.28	0.28
25×20	1×3/4	33.4×26.7	38	38	0.11	0.19	0.24	0.23	0.31	0.31
25×15	1×1/2	32×18	38	38	0.09	0.17	0.21	0.42	0.27	0.27
25×15	1×1/2	33.4×21.3	38	38	0.1	0.18	0.23	0.52	0.3	0.3
32×25	1-1/4×1	38×32	48	48	0.18	0.33	0.40	0.38	0.58	0.58
32×25	1-1/4×1	42.2×33.4	48	48	0.19	0.35	0.42	0.40	0.68	0.68
32×20	1-1/4×3/4	38×25	48	48	0.17	0.31	0.38	0.36	0.55	0.55
32×20	1-1/4×3/4	42.2×26.7	48	48	0.18	0.32	0.40	0.38	0.65	0.65
32×15	1-1/4×1/2	38×18	48	48	0.16	0.30	0.36	0.78	0.52	0.52
32×15	1-1/4×1/2	42.2×21.3	48	48	0.17	0.31	0.38	0.88	0.62	0.62
40×32	1-1/2×1-1/4	45×38	57	57	0.32	0.54	0.72	0.60	0.99	0.99
40×32	1-1/2×1-1/4	48.3×42.2	57	57	0.42	0.65	0.82	0.80	1.09	1.09
40×25	1-1/2×1	45×32	57	57	0.27	0.45	0.60	0.58	0.83	0.83
40×25	1-1/2×1	48.3×33.4	57	57	0.37	0.65	0.80	0.68	1.08	1.08
40×20	1-1/2×3/4	45×25	57	57	0.26	0.44	0.58	0.56	0.8	0.8
40×20	1-1/2×3/4	48.3×26.7	57	57	0.36	0.64	0.68	0.66	1	1
40×15	1-1/2×1/2	45×18	57	57	0.25	0.42	0.56	1.15	0.78	0.78
40×15	1-1/2×1/2	48.3×21.3	57	57	0.35	0.62	0.66	1.18	0.78	0.78
50×40	2×1-1/2	57×45	64	60	0.44	0.93	1.04	0.13	1.48	1.48
50×40	2×1-1/2	60.3×48.3	64	60	0.45	0.95	1.06	0.15	1.5	1.5
50×32	2×1-1/4	57×38	64	57	0.40	0.81	0.98	0.98	1.37	1.37
		60.3×42.2			0.43	0.89	1.00	1.00	1.42	1.42
		57×32			0.43	0.89	1.00	1.00	1.42	1.42
50×25	2×1	60.3×33.4	64	51	0.39	0.72	0.92	0.92	1.31	1.31
50×25	2×1	57×25	64	51	0.40	0.84	0.94	0.94	1.34	1.34
50×20	2×3/4	60.3×26.7	64	44	0.37	0.7	0.87	0.87	1.24	1.24
65×65	2-1/2×2-1/2	76×57	76	76	0.86	1.25	2.12	2.12	2.88	2.88
65×50	2-1/2×2	73.0×60.3	76	70	0.82	1.17	2.00	2.00	2.7	2.70
65×50	2-1/2×2	76×45	76	70	0.81	1.16	1.98	1.98	2.65	2.65
65×40	2-1/2×1-1/2	73.0×48.3	76	67	0.77	1.11	1.89	1.89	2.56	2.56
65×40	2-1/2×1-1/2	76×38	76	67	0.76	1.10	1.88	1.88	2.55	2.55
65×32	2-1/2×1-1/4	73.0×42.2	76	64	0.75	1.10	1.8	1.80	2.5	2.50
65×32	2-1/2×1-1/4	76×32	76	64	0.74	1.08	1.89	1.89	2.25	2.25
65×25	2-1/2×1	73.0×33.4	76	57	0.76	1.10	1.86	1.86	2.53	2.52
80×80	3×3	89×76	86	86	1.16	1.68	3.02	3.02	4.19	4.19
80×65	3×2-1/2	88.9×73.0	86	83	1.11	1.62	2.89	2.89	4.02	4.02
80×65	3×2-1/2	88.9×57	86	83	1.10	1.60	2.87	2.87	3.98	3.98
80×50	3×2	88.9×60.3	86	76	1.06	1.53	2.76	2.76	3.81	3.81
80×50	3×2	88.9×45	86	76	1.07	1.55	2.79	2.79	3.85	3.85
80×40	3×1-1/2	88.9×48.3	86	73	1.01	1.49	2.67	2.67	3.7	3.70
80×40	3×1-1/2	89×38	86	73	1.03	1.50	2.69	2.69	3.73	3.73
80×32	3×1-1/4	88.9×42.2	86	70	1.00	1.48	2.65	2.65	3.68	3.68
90×80	3-1/2×3	101.6×88.9	95	92	1.26	1.82	3.43	3.43	4.83	4.83
90×65	3-1/2×2-1/2	101.6×73.0	95	89	1.22	1.76	3.32	3.32	4.67	4.67
90×50	3-1/2×2	101.6×60.3	95	83	1.20	1.73	3.25	3.25	4.57	4.57
90×40	3-1/2×1-1/2	101.6×48.3	95	79	1.17	1.70	3.21	3.21	4.51	4.51
100×90	4×3-1/2	114.3×101.6	105	102	1.70	2.46	4.85	4.85	6.89	6.89
100×80	4×3	108×89	105	98	1.55	2.24	4.42	4.42	6.27	6.27
100×80	4×3	114.3×88.9	105	98	1.61	2.33	4.6	4.6	6.52	6.52
100×65	4×2-1/2	108×76	105	95	1.53	2.21	4.36	4.36	6.5	6.50
100×65	4×2-1/2	114.3×73.0	105	95	1.60	2.31	4.56	4.56	6.5	6.50
100×50	4×2	108×57	105	89	1.51	2.19	4.32	4.32	6.13	6.13
100×50	4×2	114.3×60.3	105	89	1.57	2.29	4.41	4.41	6.12	6.12
100×40	4×1-1/2	108×45	105	86	1.50	2.09	4.22	4.22	6.03	6.03
100×40	4×1-1/2	108×45	105	86	1.55	2.24	4.00	4.00	6.02	6.02
125×125	5×5	114.3×48.3	124	124	3.18	3.91	7.53	7.53	10.9	10.9
125×100	5×4	133×108	124	117	3.15	3.9	7.52	7.52	10.8	10.8
125×80	5x3	141.3×101.6	124	111	2.9	3.59	6.92	6.92	10	10.0
125×80	5x3	133×89	124	111	3.02	3.74	7.21	7.21	10.4	10.4
125×65	5×2-1/2	141.3×88.9	124	108	2.85	3.59	6.92	6.92	10	10
125×65	5×2-1/2	133×76	124	108	3.00	3.73	7.20	7.2	10.4	10.4
125×50	5×2	141.3×73.0	124	105	2.8	3.58	6.92	6.92	10.0	10.0
125×50	5×2	141.3×73.0	124	105	3.92	3.73	7.20	7.20	10.4	10.4
150×150	6×6	133×57	143	143	4.09	5.03	10.5	10.5	16.2	16.2
150×150	6×6	141.3×60.3	143	143	4.32	5.31	11.10	11.1	17.1	17.1
150×100	6×4	159×133	143	130	3.76	4.64	9.70	9.7	14.9	14.9
150×100	6×4	168.3×141.3	143	130	3.95	4.87	10.2	10.2	15.6	15.6
150×90	6×3-1/2	159×108	143	127	3.91	4.82	10.10	10.1	15.5	15.5
150×80	6×3	168.3×114.3	143	124	3.72	4.56	9.56	9.56	14.7	14.7
150×80	6×3	168.3×101.6	143	124	3.93	4.82	10.00	10	15.3	15.3
150×65	6×2-1/2	159×89	143	121	3.7	4.51	9.51	9.51	14.6	14.6
150×65	6×2-1/2	168.3×88.9	143	121	3.81	4.72	10.00	10.00	15.2	15.2
200×200	8×8	159×76	178	178	7.72	10.4	22.8	22.8	35.4	35.4
200×150	8×6	168.3×73.0	178	168	6.74	9.2	19.9	19.9	30.9	30.9
200×125	8×5	219×159	178	162	6.61	8.98	19.5	19.5	30.2	30.2
200×125	8×5	219.1×168.3	178	162	7.03	9.55	20.7	20.7	32.2	32.2
200×100	8×4	219×133	178	156	6.43	8.73	19	20.5	29.4	29.4
200×100	8×4	219.1×141.3	178	156	6.84	9.39	19.9	20.2	31.3	31.3
200×90	8×3-1/2	219×108	178	152	6.84	9.18	19.8	20.1	31.1	31.1
250×250	10×10	219.1×114.3	216	216	14.6	18.04	40.04	40.04	52.8	65.12
250×200	10×8	219.1×101.6	216	203	13.3	16.4	36.4	36.4	49.8	59.2
250×150	10×6	273×219	216	194	12.1	15.0	33.4	33.4	45.4	54.0
250×125	10×5	273×159	216	191	11.2	14.6	30.7	30.7	41.8	49.7
250×125	10×5	273.1×168.3	216	191	11.9	14.6	32.7	32.7	44.5	52.9
250×100	10×4	273×133	216	184	11	14.4	30.3	30.3	41.2	49.0
250×100	10×4	273.1×141.3	216	184	11.7	14.4	32.2	32.2	42.9	52.1
300×300	12×12	273×108	254	254	21.5	24.8	51.8	56.1	69.0	95.0
300×300	12×12	273.1×114.3	254	254	21.5	24.8	51.8	56	69	95
300×200	12×8	325×273	254	229	20.2	23.3	48.4	52.4	64.4	88.6
300×200	12×8	323.9×273.1	254	229	20.0	23.1	48.2	52.2	64.2	88.4
300×150	12×6	325×219	254	219	18.4	22.5	44.3	47.9	59	81.2
300×150	12×6	323.9×219.1	254	219	19.5	22.7	47.1	51	62.7	86.4
300×125	12×5	325×159	254	216	18	20.8	43.6	47.1	57.8	79.6
300×125	12×5	323.9×168.3	254	216	19.1	22.1	46.3	50.2	61.5	84.6
350×350	14×14	325×133	279	279	27.4	33.1	66.1	77.2	88	132
350×350	14×14	323.9×141.3	279	279	25.7	31.1	62	72.5	82.7	124
350×250	14×10	377×325	279	257	25.1	30.3	60.5	70.8	80.7	121
350×250	14×10	355.6×323.9	279	257	23.7	28.6	57.0	66.7	76	114
350×200	14×8	377×273	279	248	24.6	29.7	59.2	69.2	78	118
350×200	14×8	355.6×273.1	279	248	23.1	27.9	55.7	65.2	74.2	111
350×150	14×6	377×219	279	238	24.0	29.0	57.9	67.8	77.1	115
350×150	14×6	355.6×219.1	279	238	22.3	27.1	54.2	64.8	77.8	110
400×400	16×16	377×159	305	305	33.1	38.0	75.9	101	101	170
400×400	16×16	355.6×168.3	305	305	31.4	36.1	72.3	96.4	96.1	162
400×300	16×12	426×377	305	295	31.0	35.6	71.4	95.2	94.7	173
400×300	16×12	406.4×355.6	305	295	28.2	34.4	69.1	90.8	89.2	168
400×250	16×10	426×325	305	283	30.2	34.7	69.9	93.1	92.5	169
400×250	16×10	406.4×323.9	305	283	28.7	33.0	66.6	88.7	87.8	161
400×200	16×8	426×273	305	273	29.5	33.9	68.4	91.1	90.2	165
400×200	16×8	406.4×273.1	305	273	28.1	32.3	65.1	86.8	86	157
400×150	16×6	426×219	305	264	29.2	33.5	67.6	217	89.2	90.1
400×150	16×6	406.4×219.1	305	264	27.7	31.8	64.4	206	84.8	85.8
450×450	18×18	426×159	343	343	41.9	47.8	95.3	349	127	142
450×450	18×18	406.4×168.3	343	343	39.8	45.5	90.7	332	120	136
450×350	18×14	478×426	343	330	40.4	46.1	91.9	336	142	137
450×350	18×14	457×406.4	343	330	38.3	43.8	87.3	320	135	130
450×300	18×12	478×377	343	321	39.8	45.4	90.6	331	140	1335
450×300	18×12	406.4×355.6	343	321	37.3	42.6	85.0	216	131	1227
450×250	18×10	478×325	343	308	39.3	44.9	89.6	228	138	134
450×250	18×10	406.4×323.9	343	308	37.3	42.6	85.0	216	131	127
450×200	18×18	478×273	343	298	38.8	44.3	89.1	225	137	132
450×200	18×18	457×273.1	343	298	36.9	42.1	84.7	213	130	126
500×500	20×20	478×219	381	381	58.9	68.2	117	469	156	186
500×500	20×20	457×219.1	381	381	56.3	65.3	112	449	149	178
500×400	20×16	529×478	381	356	57	66	113	454	151	180
500×400	20×16	508×457	381	356	54.7	63.4	109	436	145	173
500×350	20×14	529×426	381	356	56	64.9	111	446	148	177
500×350	20×14	508×406.4	381	356	53.7	62.3	107	428	142	170
500×300	20×12	529×377	381	346	55.0	63.8	109	438	146	174
500×300	20×12	508×355.6	381	346	52.8	61.2	105	421	140	167
500×250	20×10	529×325	381	333	54.4	63.0	108	433	144	172
500×250	20×10	508×323.9	381	333	52.2	60.5	104	416	138	165
500×200	20×8	529×273	381	324	53.7	62.3	107	428	1412	170
500×200	20×8	508×273.1	381	324	51.5	59.7	102	410	1337	163
550×500	22×20	559×508	419	406	70.7	81.9	141	610	187	–
550×450	22×18	559×457	419	394	67.7	78.5	135	584	180	–
550×400	22×16	559×406.4	419	381	66.2	76.7	132	571	179	–
550×350	22×14	559×355.6	419	381	65.5	75.9	130	565	174	–
550×300	22×12	559×323.9	419	371	64.0	74.2	127	552	170	–
550×250	22×10	559×273.1	419	359	62.5	72.5	124	540	166	–
600×550	24×22	610×559	432	432	90.1	103	155	748	206	–
600×500	24×20	630×529	432	432	92.2	105	158	765	211	291
600×500	24×20	610×508	432	432	86	99.4	148	701	198	272
600×450	24×18	630×478	432	419	88.4	101	152	734	202	278
600×450	24×18	610×457	432	419	84.5	96.9	145	694	193	266
600×400	24×16	630×426	432	406	86.4	99.1	148	718	198	272
600×400	24×16	610×406.4	432	406	83.2	95.7	143	690	191	263
600×350	24×14	630×377	432	406	85.5	98.0	147	710	195	269
600×350	24×14	610×355.6	432	406	81.7	93.5	140	678	187	257
600×300	24×12	630×325	432	397	83.5	95.8	143	678	191	263
600×300	24×12	610××323.9	432	397	79.8	91.5	137	662	182	251
600×250	24×10	630×273	432	384	81.6	93.6	140	662	187	257
600×250	24×10	610×273.1	432	384	77.9	89.3	134	647	178	245
650×600	26×24	660×610	495	483	–	–	197	–	263	–
650×550	26×22	660×559	495	470	–	–	189	–	252	–
650×500	26×20	660×508.0	495	457	–	–	185	–	246	–
650×450	26×18	660×457.2	495	444	–	–	183	–	244	–
650×400	26×16	660×406.4	495	432	–	–	179	–	238	–
650×350	26×14	660×355.6	495	432	–	–	175	–	233	–
650×300	26×12	660×323.9	495	422	–	–	171	–	227	–
700×650	28×26	711×660	521	521	–	–	222	–	293	–
700×600	28×24	720×630	510	508	–	–	222	–	296	–
700×600	28×24	711×610	510	508	–	–	211	–	275	–
700×550	28×22	711×559	521	495	–	–	204	–	272	–
700×500	28×20	720×529	521	483	–	–	222	–	296	–
700×500	28×20	711×508	521	483	–	–	199	–	265	–
700×450	28×18	720×478	521	470	– –	– –	208	– –	275	– –
700×450	28×18	711×457	521	470	– –	– –	195	– –	263	– –
700×400	28×16	720×426	521	457	– –	– –	206	– –	268	– –
700×400	28×16	711×406.4	521	457	– –	– –	190	– –	259	– –
700×350	28×14	720×377	521	457	– –	– –	201	– –	260	– –
700×350	28×14	711×355.6	521	457	– –	– –	183	– –	253	– –
700×300	28×12	720×325	521	448	– –	– –	197	– –	256	– –
700×300	28×12	711×323.9	521	448	– –	– –	179	– –	244	– –
750×700	30×28	762×711	559	546	–	–	254	–	338	–
750×650	30×26	762×660	559	546	–	–	243	–	323	–
750×600	30×24	762×610	559	533	158	197	238	–	317	–
750×550	30×22	762×559	559	521	157	195	235	–	314	–
750×500	30×20	762×508	559	508	153	174	230	–	306	–
750×450	30×18	762×457	559	495	149	170	224	–	299	–
750×400	30×16	762×406.4	559	483	146	166	219	–	292	–
750×350	30×14	762×355.6	559	483	141	166	211	–	285	–
750×300	30×12	762×323.9	559	473	137	156	206	–	275	–
750×250	30×10	762×273	559	460	132	150	198	–	264	–
800×750	32×30	813×762	597	584	–	–	290	–	386	–
800×700	32×28	820×720	597	572	–	–	291	– –	388	– –
800×700	32×28	713×711	597	572	–	–	277	– –	370	– –
800×650	32×26	813×660	597	572	–	–	271	–	362	–
800×600	32×24	820×630	597	559	–	–	279	– –	3556	– –
800×600	32×24	813×610	597	559	–	–	268	– –	3558	– –
800×550	32×22	813×559	597	546	–	–	262	–	350	–
800×500	32×20	820×529	597	533	–	–	273	– –	364	– –
800×500	32×20	813×508	597	533	–	–	256	– –	342	– –
800×450	32×18	820×478	597	521	–	–	270	– –	360	–
800×450	32×18	813×457	597	521	–	–	250	– –	334	–
800×400	32×16	820×426	597	508	–	–	264	– –	352	–
800×400	32×16	813×406.4	597	508	–	–	241	– –	322	–
800×350	32×14	820×377	597	508	–	–	258	–	344	–
800×350	32×14	813×355.6	597	508	–	–	235	–	314	–
850×800	34×32	864×813	635	622	–	–	328	610	437	–
850×750	34×30	864×762	635	610	–	–	314	–	419	–
850×700	34×28	864×711	635	597	–	–	307	–	409	–
850×650	34×26	864×660	635	597	–	–	304	–	405	–
850×600	34×24	864×610	635	584	–	–	297	545	396	–
850×550	34×22	864×559	635	572	–	–	290	532	387	–
850×500	34×20	864×508	635	559	–	–	283	520	378	–
850×450	34×18	864×457	635	546	–	–	273	501	364	–
850×400	34×16	864×406.7	635	533	–	–	266	488	355	–
900×850	36×34	914×864	673	660	–	–	619	736	511	–
900×800	36×32	920×820	673	648	–	–	370	741	594	–
900×800	36×32	914×813	673	648	–	–	353	690	470	–
900×750	36×30	914×762	673	635	–	–	345	One	460	–
900×700	36×28	920×720	673	622	–	–	355	One	473	–
900×700	36×28	914×711	673	622	–	–	341	One	455	–
900×650	36×26	914×660	673	622	–	–	333	667	447	–
900×600	36×24	914×610	673	610	–	–	326	651	434	–
900×550	36×22	914×559	673	597	–	–	318	636	424	–
900×500	36×20	920×529	673	584	–	–	347	685	462	–
900×500	36×20	914×508	673	584	–	–	306	598	409	–
900×450	36×18	920×478	673	572	–	–	343	693	457	–
900×450	36×18	914×457	673	572	–	–	299	913	398	–
900×400	36×16	920×426	673	559	–	–	335	669	447	–
900×400	36×16	914×406.4	673	559	–	–	287	575	383	–

It connects pipes of the same diameter to achieve fluid diversion or convergence in different directions.
The branch direction of the pipe is at a 45° angle to the main pipe, allowing the fluid to change direction at a smaller angle.
It is connected to the pipeline by welding, and has high strength and sealing performance, and can withstand high pressure and temperature.
It is made of stainless steel, duplex steel, or special alloy steel, and has corrosion resistance, and can resist corrosion media such as oxidation, acidity, alkalinity, and salt solution.

Installation Dimensional Drawing

Specifications

Read MoreRead Less

Table 3: 45° Butt Weld Equal Lateral Tee Dimensions
Nominal Diameter DN	End Outer Diameter D₁, D₂ (mm)	Center to End (mm)
Nominal Diameter DN	End Outer Diameter D₁, D₂ (mm)	Center to End A	Center to End B	Center to End C
50	60.3	40	110	110
65	73.0	45	130	130
80	88.9	50	165	165
90	101.6	55	175	175
100	114.3	60	180	180
150	168.3	80	270	270
200	219.1	130	360	360
250	273.1	140	430	430
300	323.9	145	500	500
350	355.6	150	560	560
400	406.4	160	620	620
450	457.0	180	720	720
500	508.0	190	750	750
550	559.0	205	810	810
600	610.0	220	850	850

It connects pipes of different diameters and achieve fluid diversion in different directions due to the smaller diameter of the branch pipe.
The branch direction of the pipe is at a 45° angle to the main pipe, allowing the fluid to change direction at a smaller angle.
It is connected to the pipeline by welding, and has high strength and sealing performance, and can withstand high pressure and temperature.
It is made of stainless steel, duplex steel, or special alloy steel, and has corrosion resistance, and can resist corrosion media such as oxidation, acidity, alkalinity, and salt solution.

Installation Dimensional Drawing

45° butt weld reducing tee installation dimension drawing

Read MoreRead Less

Table 4: 45° Butt Weld Reducing Tee Dimensions
Nominal Diameter DN	Outer Diameter of End (mm)		Center to End (mm)
Nominal Diameter DN	D₁	D₂	Center to End A	Center to End B	Center to End C
50×50×40	60.3	48.3	40	110	100
80×80×50	88.9	60.3	50	165	150
80×80×40	88.9	48.3	50	165	145
90×90×80	101.6	88.9	55	175	170
90×90×65	101.6	73.0	55	175	160
90×90×50	101.6	60.3	55	175	150
90×90×40	101.6	48.3	55	175	140
100×100×90	114.3	101.6	60	180	175
100×100×80	114.3	88.9	60	180	175
100×100×65	114.3	73.0	60	180	170
100×100×50	114.3	60.3	60	180	160
150×150×100	168.3	114.3	80	270	260
150×150×90	168.3	101.6	80	270	255
150×150×80	168.3	88.9	80	270	255
200×200×150	219.1	168.3	130	360	340
200×200×100	219.1	114.3	130	360	320
200×200×90	219.1	88.9	130	360	310
250×250×200	273.1	219.1	140	430	410
250×250×150	273.1	168.3	140	430	400
250×250×100	273.1	114.3	140	430	390
300×300×250	323.9	273.1	145	500	480
300×300×200	323.9	219.1	145	500	460
300×300×150	323.9	168.3	145	500	445
350×350×300	355.6	323.9	150	560	540
350×350×250	355.6	273.1	150	560	530
350×350×200	355.6	219.1	150	560	515
400×400×350	406.4	355.6	160	620	590
400×400×300	406.4	323.9	160	620	580
400×400×250	406.4	273.1	160	620	560
400×400×200	406.4	219.1	160	620	550
450×450×400	457.0	406.4	180	720	670
450×450×350	457.0	355.6	180	720	670
450×450×300	457.0	323.9	180	720	670
450×450×250	457.0	273.1	180	720	650
450×450×200	457.0	219.1	180	720	640
500×500×450	508.0	457.0	190	750	730
500×500×400	508.0	406.4	190	750	710
500×500×350	508.0	355.6	190	750	700
500×500×300	508.0	323.9	190	750	690
550×550×500	559.0	508.0	205	810	790
550×550×450	559.0	457.0	205	810	770
550×550×400	559.0	406.4	205	810	750
600×600×500	610.0	508.0	220	850	830
600×600×450	610.0	457.0	220	850	810
600×600×400	610.0	406.4	220	850	790
600×600×350	610.0	355.6	220	850	770
600×600×300	610.0	323.9	220	850	750

Functions

Schematic diagram of butt weld equal tee for fluid branching

Butt weld equal tee is used to branch or converge fluids in a piping system.

Schematic diagram of butt weld reducing tee for fluid branching

The branch pipe of the butt weld reducing tee is smaller than the main pipe, allowing fluid to flow from the main line to the branch line for branching.

Schematic diagram of 45° butt weld equal lateral tee for fluid branching

45° butt weld equal tee is used to branch or converge fluids in a piping system.

Schematic diagram of 45° butt weld reducing lateral tee for fluid branching

The branch pipe of the 45° butt weld reducing tee is smaller than the main pipe, so fluid can only flow from the main line to the branch line for branching, as shown in the diagram.

Videos

#

Downloads

Here are product catalogue and data sheet for your reference. more information just contact us.
