Snowate Electromagnetic Metering Pump

Snowate Metering Pump

Snowate Electromagnetic Metering Pump

Modular Sub-Storage Structure Snowate Electromagnetic Metering Pump

The Snowate electromagnetic metering pump employs a modular compartment design with independent isolation of core components (pump head, drive system, and circuitry). It combines corrosion-resistant materials (such as PVC/PVDF pump heads and ceramic valve balls) with high-precision PTFE diaphragms to achieve a metering accuracy of ±1% and ensures a long service life.

This product supports global wide voltage ranges (AC100–240V) and offers multiple control options including pulse signal, 4–20mA current, and touch operation. It meets the precise dosing requirements in wastewater treatment, chemical/pharmaceutical processes, and clean water disinfection. It features low energy consumption, low maintenance, and strong environmental adaptability, making it widely used in automated industrial systems and environmental protection applications.

Specification
Videos

Specification

EZ/EP/EH/EN/ET/ED Series
EJ Series
EH-E Series
LT Series

EZ/EP/EH/EN/ET/ED Series

An EZ series Snowate electromagnetic metering pump

EZ Series – Manual Type by Knob

An EP series Snowate electromagnetic metering pump

EP Series – Manual Type by Button

An ET series Snowate electromagnetic metering pump

ET Series – 5–24V Pulse Signal Control

An EH series Snowate electromagnetic metering pump

EH Series – Pulse/Manual Switch

An EN series Snowate electromagnetic metering pump

EN Series – 4–20mA Manual Switch

An ED series Snowate electromagnetic metering pump

ED Series – RS485/Manual Switch

An illustration introducing the naming convention of electromagnetic metering pump models

Specification

Read MoreRead Less

Table 1: Series Functions
EZ series	Manual	Manual adjustment, economical and practical
EP series	Manual	LED display, convenient and economical
ET series	Pulse	5–24 V active pulse signal control
EH series	LCD display with level stop function	Passive pulse / manual switch, adjustable stroke length
EN series		4–20 mA / manual switch, adjustable stroke length
ED series		RS485 / manual switch, adjustable stroke length

Read MoreRead Less

Table 2: Model
Model	Pressure (bar)	Flow (L/h)	Capacity/Stroke (ml)	Max. Frequency	Power (W)	Air Vent
B10	10	2.28	0.05–0.11	360	20	○
B15	7	3.9	0.09–0.18	360	20	○
B20	4	5.7	0.13–0.26	360	20	○
B30	2	12	0.28–0.56	360	20	×
C15	10	4.8	0.09–0.22	360	24	○
C20	7	7.8	0.14–0.36	360	24	○
C30	3.5	16.2	0.3–0.75	360	24	×
C35	2	24	0.44–1.11	360	24	×

Read MoreRead Less

Table 3: Materials
Material	Pump Head	Ball	Seat	Guide	Gasket	O-ring	Diaphragm	Suitable Liquid
VC	PVC	Ceramic	FKM	PVC	PTFE	FKM	PTFE+EPDM (EPDM is not wet end)	Acid
VH	PVC	Ceramic	EPDM	PVC	PTFE	EPDM	PTFE+EPDM (EPDM is not wet end)	Alkali
DF	PVDF	Ceramic	PTFE	PVDF	PTFE	PTFE	PTFE+EPDM (EPDM is not wet end)	Strong acid
SU	SU316	SU316	SU316	SU316	PTFE	PTFE	PTFE+EPDM (EPDM is not wet end)	High temperature liquid
FR	PVDF	Ceramic	PVDF	PVDF	–	FKM/EPDM	PTFE+EPDM (EPDM is not wet end)	Strong acid
FR is PVDF pump head all with air vent.

Table 4: Voltage Code
W	Wide voltage AC 100–240 V, 50 Hz / 60 Hz

Read MoreRead Less

Table 5: Hose Size (I.D. × O.D.)
1	φ4 × φ9, (PVC transparent braided hose 3 m)
2	φ8 × φ13, (PVC transparent braided hose 3 m)
3	φ4 × φ6, (PVDF transparent hose 3 m)
4	φ8 × φ10, (PVDF transparent hose 3 m)
5	φ8 × φ12, (POE/PE hose 3 m)
Hose material and size will be configured according to specific conditions.

EJ Series

EJ Diaphragm Metering Pump is compact in structure. EJ series electromagnetic diaphragm metering pump is small in size, and the pump head is made of PP material, which has good corrosion resistance. The pump body is made of PPE + GF material, which can withstand high temperature. Using manual adjustment (EJ-P) or pulse signal control (EJ-A), screen display, adjustment range of 0–360 times per minute, more uniform dosing. Maximum pressure 10bar, maximum flow 9 L/H.

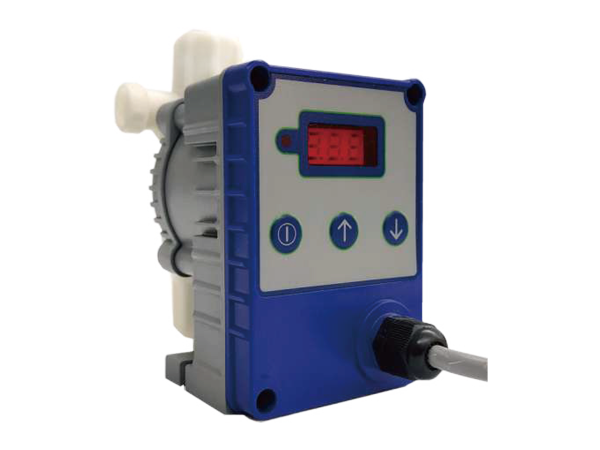

EJ-P Manual Type

Small size, cost saving EJ-P series electromagnetic diaphragm metering pump has small size and compact structure. It is a cost-effective electromagnetic diaphragm metering pump.
Adjustable frequency Use manual adjustment frequency, screen display adjustment range of 0–360 times per minute.
Corrosion resistance The pump head is made of PP material, which has good corrosion resistance. The pump body is made of PPE + GF material, which can withstand high temperature.

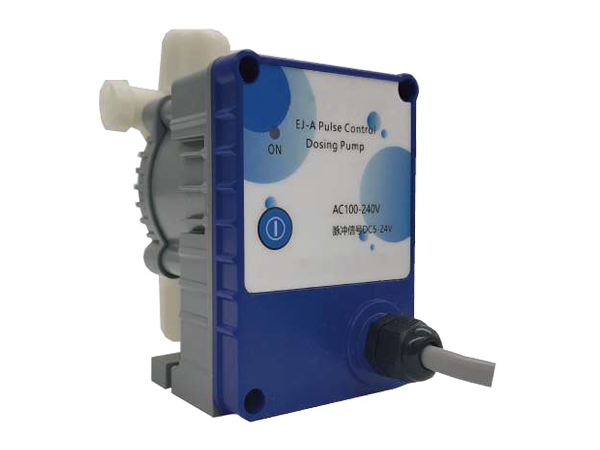

EJ-A Manual Type

Automatically by pulse EJ-A is an automatic dosing pump for liquid dosing with pulse signal. The dosing frequency is synchronized with the pulse with simple operation.
Exhaust function EJ series is equipped with exhaust outlet for easy exhaust and easy dosing.
Pulse multiplier and divide ratio function (optional) The working frequency of the pump can be controlled by the pulse signal with multiplication divide ratio. And can also contact Snowate team to make customized program.

EH-E Series

EH-E series electromagnetic diaphragm metering pump has a compact structure and a wide range of flow regulation, up to 75 L/H. The EH-E operates both under manual adjustment and automatically dosing under various external signals (MA and pulse signals).

Wide adjustment range: Stroke length adjustable from 20%–100%, frequency 0–360 spm, providing a broad flow range.
Multiple control modes: Supports manual, proportional, pulse, and count control, easily switchable via button.
Reliable protection: Aluminum alloy frame with IP65 waterproof and dust-proof design ensures resistance to liquid and gas corrosion.
Material options: Pump head available in PVC, PVDF, or SUS, with wetted parts made of corrosion-resistant materials such as ceramic, FKM, and PTFE.

A tilted EH-E series Snowate electromagnetic metering pump

Specification

Read MoreRead Less

Table 3: EH-E Series Electromagnetic Metering Pump Specification
Model	E36	E46	E56
Max.capacity (ml/min)	520	750	1250
Max.capacity (L/hour)	31.2	45	75
Max.discharge pressure (Mpa)	0.7 (SH: 0.6)	0.4	0.2
Power supply (for both 50/60 Hz)	AC 100–240 V single phase
Insulation type, etc.	E type insulation and built-in thermal protector,with 2.0 m power cable
Stroke rate	0–360 spm
Stroke length	20–100 %
Ambient temperature	0–40 °C
Range of liquid temperature	Type VC: 0–40 °C Type FC, SH: 0–60 °C
Ambient humidity	30–85% RH
Connection for type VC (mm)	8 × 13, 9 × 12, 10 × 12, 9 × 13, 10 × 16
Connection for type FC (mm)	10 × 12
Connection for type SH	Rc 1/4	Rc 3/8	Rc 3/8
Average power consumption	48 W
Average current	0.8 A

LT Series

DC voltage operation: DC 12 V or DC 24 V
High frequency: 0–720 strokes per minute. Types of control: pulse signal. The minimum flow rate is 0.055 ml per stroke.
Waterproof and dust proof: The drive unit and control unit are water / dust resistant.

Pulse control

The pump can receive the pulse signal to work.
The pump works synchronously once by single pulse signal.
In addition to the power supply, input pulse signals are required to operate the pump.
Pump operating rate should not exceed 720 spm even if the external signal input pulse exceeds 720 spm.

A tilted LT series Snowate electromagnetic metering pump

Read MoreRead Less

Table 4: LT Series Electromagnetic Metering Pump Specification
Model	Flow rate (ml/min)	Pressure (Mpa)	Frequency (spm)	Connection (mm)	Voltage (V)	Power (W)	Current (A)	Weight (Kg)
LT-1	38	0.2	720	4 x 6	12	5.6	1.5	0.5
LT-2	38	0.2	720	4 x 6	24	5.6	1	0.5
