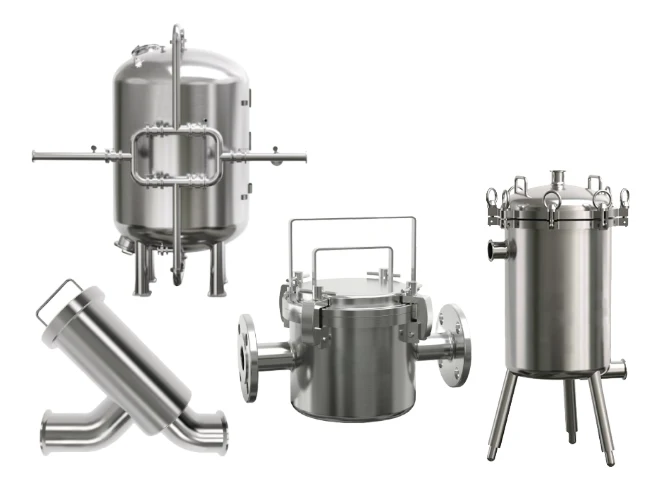

Industrial Pipe Filter Housing

Food & Pharmaceutical Filter Housing

Industrial Pipe Filter Housing

Industrial Pipe Filter Housing Designed for Protecting Downstream Equipment

Industrial pipe filter housing is an efficient filtration device installed in pipeline systems, specifically designed to intercept particulate impurities in the media and protect the normal operation of downstream equipment. It features a compact structure and strong durability, and is suitable for the filtration of various liquids, gases, or steam. It is widely used in industries such as chemical engineering, petroleum, pharmaceuticals, and food. Regular cleaning of the filter mesh or replacement of the filter element can effectively extend the equipment's lifespan and improve system operating efficiency.

Specification
Videos

Specification

Mesh Type Filter Housing
Basket Type Filter Housing
Tube Filter Housing
Y-Type Filter Housing
Magnetic Fluid Filter Housing
Mechanical Filter Housing
Vent Housing

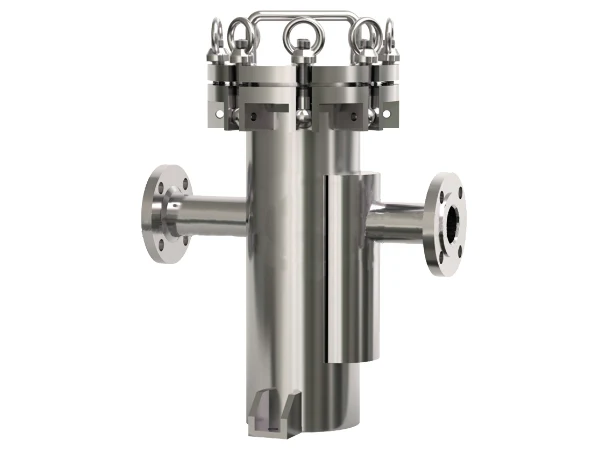

Mesh Type Filter Housing

Mesh type filter housing is a larger pipe filter. The filtration area of the mesh is 2–3 times than the area of pipe diameter. It is suitable for the material with the highest content of impurities and the high flux.
Mesh type filter housing using multiple polishing process ensures that the surface Ra reaching 0.6 μm up to the sanitary grade requirement. The filter surface is mirror polished.
Filter housing can use eyebolt connection or quick-open connection, which is convenient for operation, economical and practical.

Specification

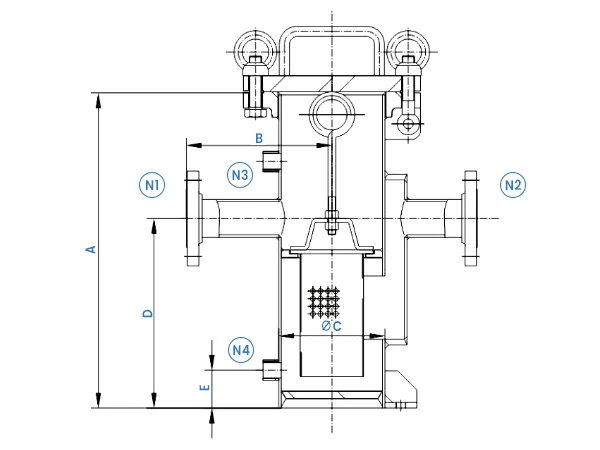

Annotated mesh type filter housing drawing

Read MoreRead Less

Table 1: Mesh Type Filter Housing Parameters
Material
Shell	304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain Valve	304, 316L
Eyebolt	304
O-ring	EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)	0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)	140 °C
Connection
Connection of shell	Tri-clamp, flange (eyebolt)
In-outlet N1, N2	Flange, tri-clamp, thread
N3 Vent valve (option)	3/4" male thread
N4 Drain valve (option)	1" male thread
Dimension Parameters
Model	1 basket
Model	In-outlet 2"	In-outlet 3"	In-outlet 4"	In-outlet 5"
A: Total height (mm)	500	580	670	830
B: The distance from inlet to center (mm)	230		260	300
C:Shell diameter (mm)	φ6"		φ10"	φ14"
D: The height from in-outlet (N1, N2) to ground (mm)	300	360	430	560
E: The height from drain valve (N4) to ground (mm)	60
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

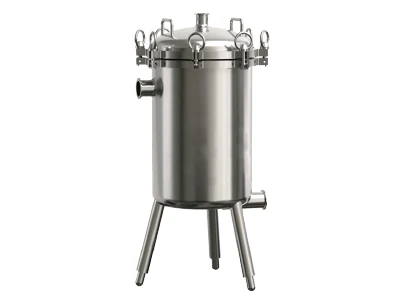

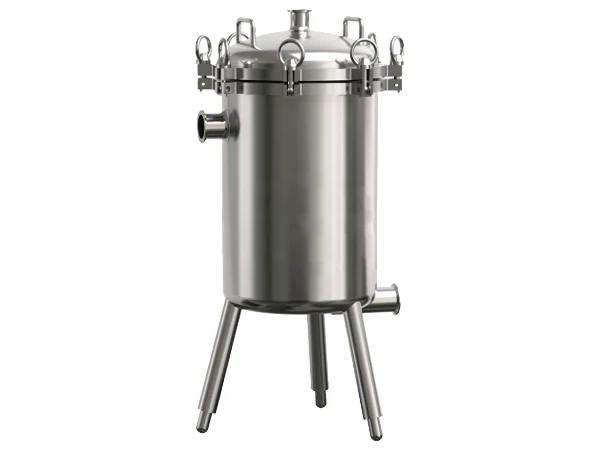

Basket Type Filter Housing

Basket type filter housing is a improved small basket strainer which can remove a small amount of solid particles in the liquid, and protect compressor, pump, instruments and other equipment to work normally.
Basket type filter housing adopts multiple polishing processing steps to ensure that the interface Ra reaches to 0.6 μm up to sanitary grade. All of the surface is mirror polished.
Filter housing shell can use eyebolt connection or quick-open connection, easy to operate, economical and practical.
Small size filter housings install an adjusting screw nut at the bottom of the leg to adjust the height of the filter, making it easy to use.

Specification

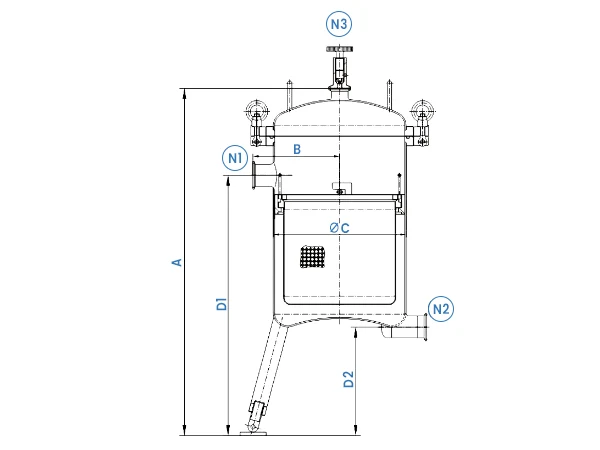

Annotated basket type filter housing drawing

Read MoreRead Less

Table 2: Basket Type Filter Housing Parameters
Material
Shell	304, 316L, Duplex SS, Titanium, Hastelloy
Vent valve	304, 316L
Eyebolt	304
O-ring	EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)	0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)	150 °C
Connection
Connection of shell	Flange (eyebolt)
In-outlet N1, N2	Tri-clamp
N3 Vent valve (option)	1.5" tri-clamp
Dimension Parameters
Model	1 basket
Model	16 Filter basket	25 Filter basket	40 Filter basket
A: Total height (mm)	800	1040	1170
B: The distance from inlet to center (mm)	200	235	250
C: Shell diameter (mm)	φ300	φ350	φ400
D1: The height from inlet to ground (mm)	600	800	900
D2: The height from outlet to ground (mm)	250	300	300
In-outlet N1, N2 size	1.5"/2"/2.5"
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

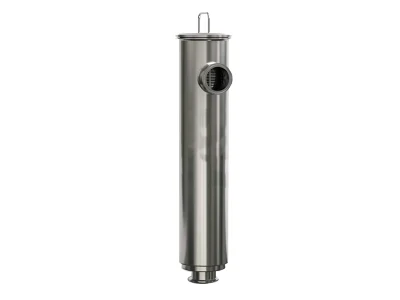

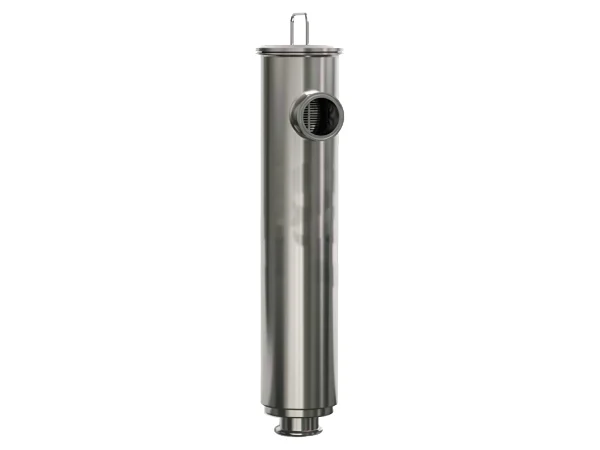

Tube Filter Housing

Tube filter housing is an improved small tube strainer which can remove a small amount of solid particles in the liquid, and protect compressor, pump, instruments and other equipment to work normally.
Tube filter housing adopts multiple polishing processing steps to ensure that the interlace Ra reach to 0.4 μm close to sanitary level. All of the surface is mirror polished.
Filter housing adopts quick connection, easy to handle, economical and practical.

Specification

Read MoreRead Less

Table 3: Tube Filter Housing Parameters
Material
Shell				304, 316L, Duplex SS, Titanium, Hastelloy
Tube cartridge				304, 306L
O-ring				EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)				0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)				150 °C
Connection
Connection of shell				Tri-clamp
In-outlet N1, N2				2"/2.5"/3" tri-clamp
Dimension Parameters
Model		A: Total height (mm)	B: The distance from inlet to center (mm)		C: Shell diameter (mm)	D: Inlet N1 to filter cover height (mm)	E: The diameter of the filter screen (mm)	F: The length of the filter screen (mm)
In-outlet 2"	46 Cartridge	621	89		φ101.6	100	φ76	554
	48 Cartridge	833			φ101.6		φ76	766
	56 Cartridge	621			φ129		φ100	554
	58 Cartridge	833			φ129		φ100	766
In-outlet 2.5"	46 Cartridge	621	108		φ101.6	100	φ76	554
	48 Cartridge	833			φ101.6		φ76	766
	56 Cartridge	621			φ129		φ100	554
	58 Cartridge	833			φ129		φ100	766
In-outlet 3"	56 Cartridge	621	127		φ129	100	φ100	554
In-outlet 3"	58 Cartridge	833	127		φ129	100	φ100	766
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

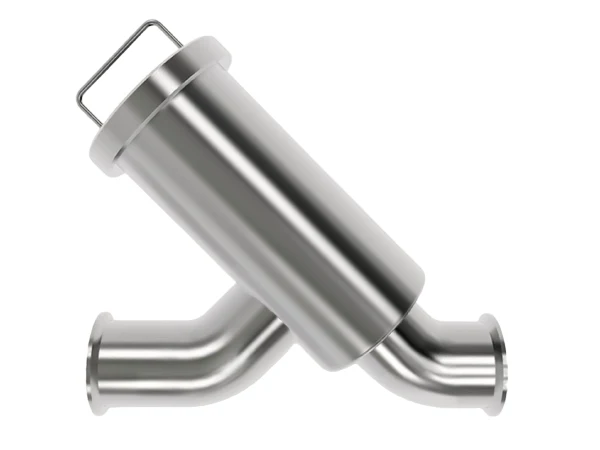

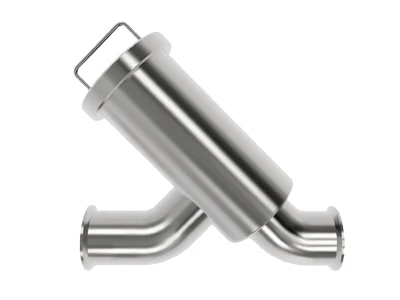

Y-Type Filter Housing

Y-type filter housing is an improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work successfully.
With reasonable design, Y-type filter housing features no dead corner, low resistance and easy drainage.
Filter housing adopts multiple polishing processing steps to ensure that the interface Ra reach to 0.4 μm close to sanitary level. All of the surface is mirror polished.
Filter housing adopts quick connection, easy to handle, economical and practical.

Specification

Read MoreRead Less

Table 4: Y-Type Filter Housing Parameters
Material
Shell	304, 316L, Duplex SS, Titanium, Hastelloy
Tube cartridge	304, 316L
O-ring	EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)	0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)	150 °C
Connection
Connection of shell	Tri-clamp
In-outlet N1, N2	2"/2.5"/3" tri-clamp

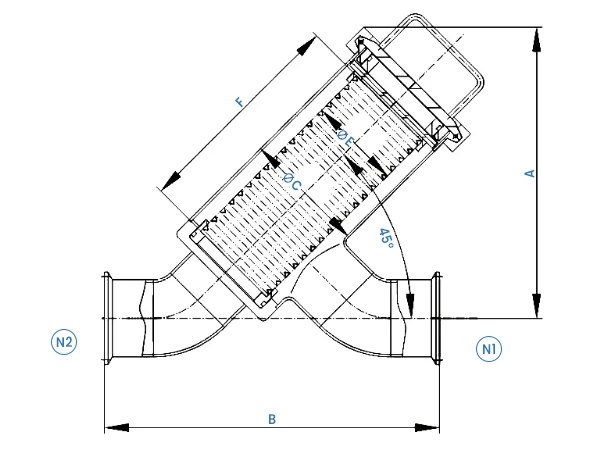

Dimension Parameters
Model	In-outlet
Model	1"	1.5"	2"	2.5"	3"
A: Total height (mm)	185		240		300
B: The distance from inlet to center (mm)	220		275		325
C: Shell diameter (mm)	φ76		φ101.6		φ129
E: The diameter of the filter screen (mm)	φ50		φ76		φ100
F: The length of the filter screen (mm)	135		180		225
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

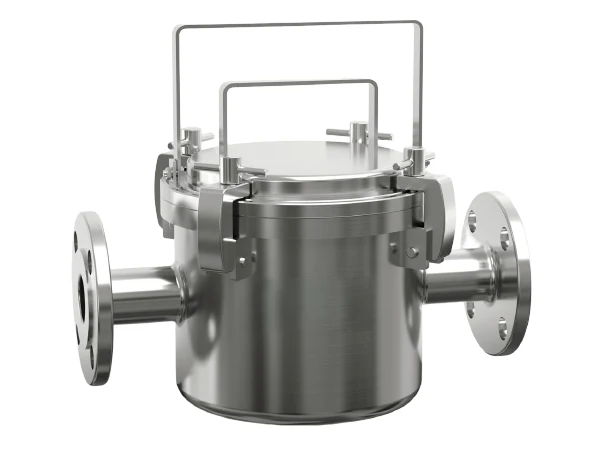

Magnetic Fluid Filter Housing

Magnetic fluid filter housing is applied to fluid, semi fluid and other different viscous fluid materials, to remove the iron impurities and other ferromagnetic particles and keep the material clean. Besides, it also protects the downstream production equipment.
Magnetic fluid filter housing uses multiple polishing processing to ensure the interface Ra reach to 0.6 μm close to sanitary level. All of the surface is mirror polished.
Using flange, quick-open, eyebolt plate or quick release clamp makes install, take out and clean magnetic component easily.
Reasonable structure design can ensure the best de-ferrous effect while not hindering the flow of the material.

Specification

Read MoreRead Less

Table 5: Magnetic Fluid Filter Housing Parameters
Material
Shell		304, 316L, Duplex SS, Titanium, Hastelloy
O-ring		EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)		0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)		150 °C
Connection
Connection of shell		Tri-clamp (0.6 Mpa), flange (quick release clamp, 1.0 Mpa)
In-outlet N1, N2		Flange, tri-clamp, thread
Dimension Parameters
Qty. of magnet	Shell diameter (mm)		In-outlet N1, N2 size	Magnetic bar
Qty. of magnet	Shell diameter (mm)		In-outlet N1, N2 size	Diameter (mm)	Length
1	φ50		1"/1.5"	φ20	6"/8"/10"
4, 5	φ114		1"/1.5"/2"/2.5"
6, 7	φ159		1.5"/2"/2.5"/3"
9	φ190		2"/2.5"/3"/4"
Note: The diameter of in-outlet under 3" using quick-open, 3" and 4" using flange. The dimension parameters data is the standard, it can customize according to customer's requirements.

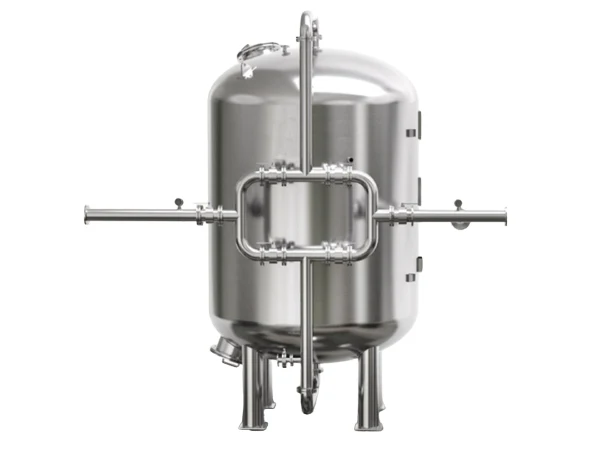

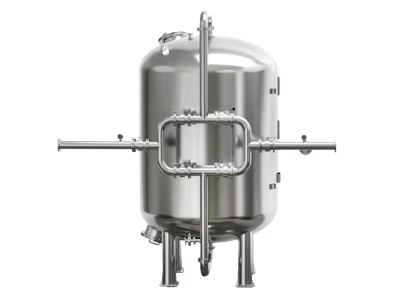

Mechanical Filter Housing

Mechanical (carbon, sand) filter housing is an important part for the early pre-tretment process of pure water preparation and water purification system. It is suitable for industrial or domestic water in mining enterprises and urban water supply treatment, where the filtered effluent turbidity generally within 5 mg/L and meets the drinking water quality standards. It has good remove effect for suspended solids in industrial sewage. The colloidal particles that cannot be removed by sedimentation due to their coagulated flake-like structure in the water can be removed by passing the water through the filter bed inside the filter, making the water transparent.
Mechanical filter housing uses multiple polishing processing to ensure the interface Ra reach to 0.6 μm close to sanitary level. All of the surfaces mirror polished.
The equipment features low cost, low operating cost and easy management.
The reasonable structural design allows the filter media to be backwashed and reused multiple times, ensuring a long service life and excellent filtration performance, while occupying a small area.

Specification

Annotated mechanical filter housing drawing

Read MoreRead Less

Table 6: Mechanical Filter Housing Parameters
Material
Shell		304, 316L, Duplex SS, Titanium, Hastelloy
Stabilizer blade, sling		304
Connect pipe		304
O-ring		EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)		0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)		120 °C
The filter shell adopts		ATM (pressure test with full water)
Connection
In-outlet N1, N2		1/2" flange, tri-clamp, thread
Pressure gauge connection N3, N4		1.5" thread
Vent valve connection N5		1/4" thread
Sight glass connection N6		Flange
Manhole N7		Flange
Packing hand hole N8		Flange
Dimension Parameters
C: Shell diameter (mm)	A: Total height (mm)		B: The distance from inlet to center (mm)	D: The height from packing hand hole to ground (mm)	Equipment output (T/h)
φ600	2350		1500	1200	1.4–2.8
φ800	2350				2.5–5.0
φ1000	2600				4.0–8.0
φ1200	2600				5.5–11
φ1400	2800		1800	1200	7.5–15
φ1600	2800		1800	1200	10–20
φ1800	2800		1800	1200	13–25
φ2000	2800		1800	1200	16–30
φ2500	3000		2000	1200	25–49
φ3000					35–70
φ3200					40–80
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

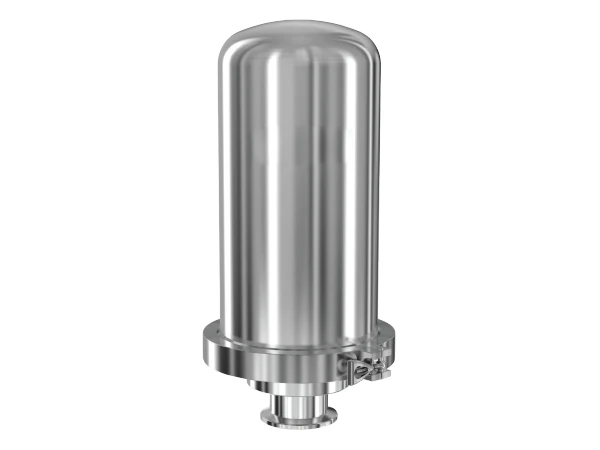

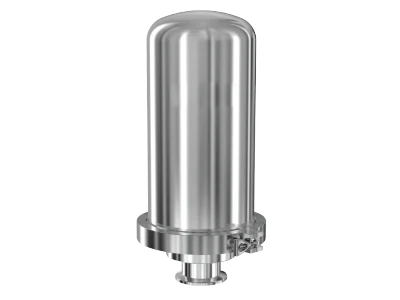

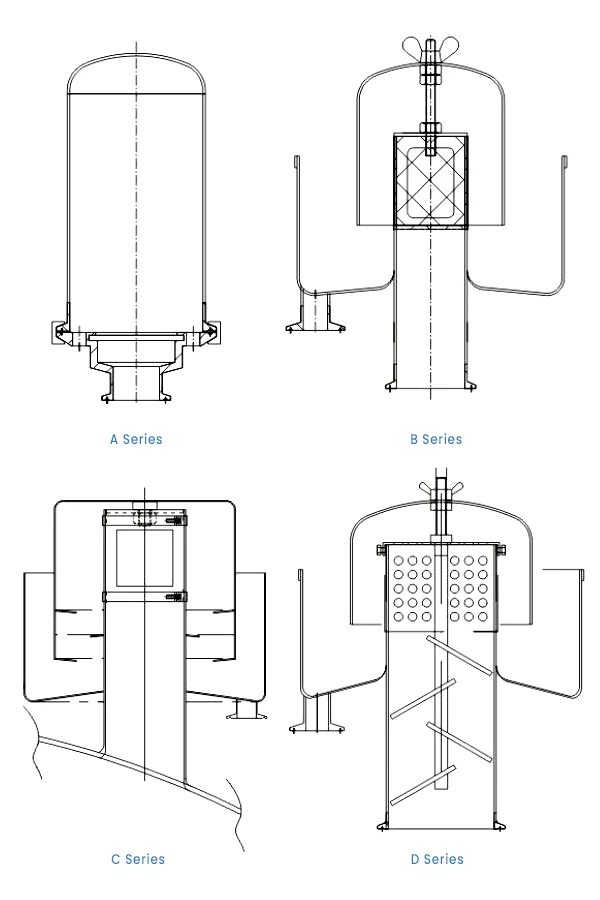

Vent Housing

The sanitary vent housing is designed and manufactured for the purpose of sterilization when exchanging gas for pharmaceutical and food containers. It can automatically regulate the pressure inside the tank and balance the pressure difference between the inside and outside of the container.
The filter housing is made of stainless steel 316L or 304, and the inner wall is electrolytic mirror polished or mechanical polished, easy to clean without dead corner.
PTFE filter cartridge filters bacteria efficiently and keeps the tank clean and aseptic.
The filter element has uniform, stable mesh openings and low gas resistance.
The precision of gas filtration is 0.1 μm, reaching 99.99% and meeting the requirements of GMP aseptic level.
Interface with quick open type (clamp), tank with 304 or 316L, the inner surface of the mirror polishing Ra ≤ 0.28 μm – 0.6 μm, the outer surface can be polished according to customers requirement.

Specification

Table 7: Vent Housing Parameters
Material
Housing					304, 316L, Duplex SS, Titanium, Hastelloy
Cartridge					PTFE, PP, Sintered screens
O-ring					EPDM, PTFE, FKM Silicone
Operating Conditions
Max. operating pressure (Mpa)					0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)					150 °C
Connection
Cup and bowl				Clamp
Inlet and outlet				Clamp, flange, screw
Dimension Parameters
Size	2.5"					5"			10"
A: Diameter (mm)	76	89	102			76	89	102	76	89	102
B: Height (mm)	130					194			320
C: Connection(mm)	50.5					50.5/64			64/77.5
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.
