Sanitary Cartridge Filter Housing for Food, Pharmaceuticals & Other Fields

The sanitary cartridge filter housing is a high cleanliness filtration device widely used in the fields of food, pharmaceuticals, and bioengineering. Using high precision filter elements as the filter medium, it efficiently intercepts tiny particles, impurities, and microorganisms in liquids or gases, ensuring the purity and safety of the medium. Its design complies with sanitary standards, with an overall structure free of sanitary dead zones, fully meeting the requirements of GMP standards. The inner wall polishing precision reaches 0.3 μm, the outer wall polishing precision reaches 0.4 μm, and the surface treatment meets absolute sanitary standards, providing advantages such as efficient filtration, ease of cleaning, and quick replacement, making it an ideal choice for high sanitary requirement places.

Specification
Videos

Specification

Single Cartridge Sanitary Filter Housing
Multi Cartridge Sanitary Filter Housing
Precision Liquid Filter Housing

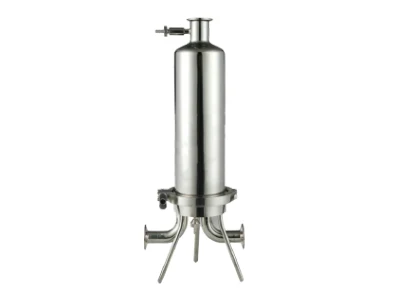

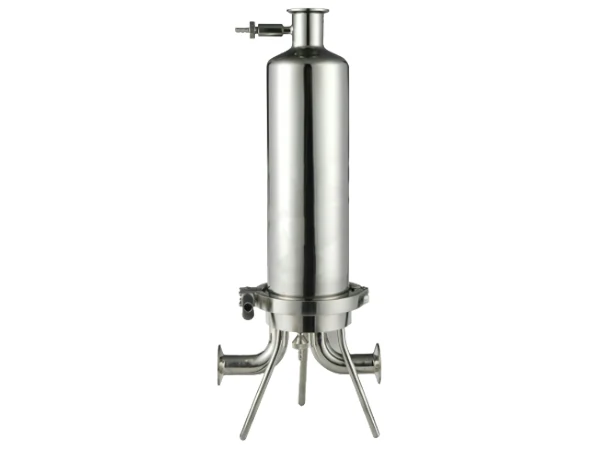

Single Cartridge Sanitary Filter Housing

Single cartridge sanitary filter housing is high-quality sanitary-grade filter housing which services for small flow rates.
Single cartridge sanitary filter housings have excellent surface treatment and maximal corrosion resistance to prevent bacterial contamination.
Using strong fast loading, the highest pressure of 0.6 MPa and 1.0 MPa.
Low exhaust valve and drain valve: The threaded sleeve and bell-shaped connector are detached, so when venting and draining, the connected hose will not rotate along with it.
The filter support legs use reinforced threads, making them less likely to strip and more durable. An adjustable nut can be installed at the bottom of the support legs to adjust the filter height, making it more convenient to use.

Specification

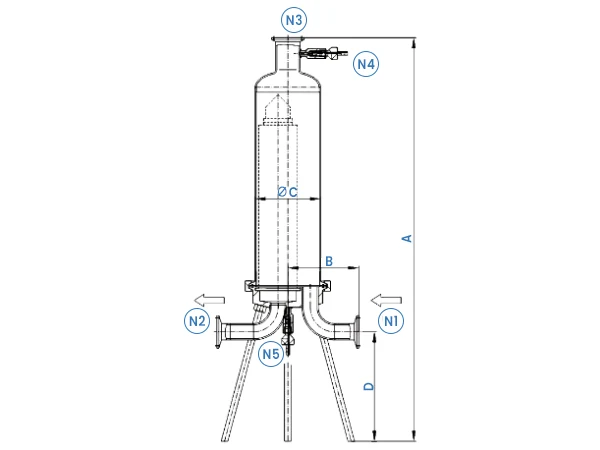

Annotated single cartridge sanitary filter housing drawing

Read MoreRead Less

Table 1: Single Cartridge Sanitary Filter Housing Parameters
Material
Shell	304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve	304
Quick-open, Stabilizer blade	304
O-ring	EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)	0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)	150 °C
Disinfect	Online or steam sterilization: 121 °C / 30 min
Connection
Connection of shell	Tri-clamp
In-outlet N1, N2	Tri-clamp
N3 Pressure gauge (option)	1.5" tri-clamp
N4 Vent valve (option)	M6 thread
N5 Drain valve (option)	M6 thread
Cartridges connection	222, 226
Dimension Parameters
Model	1Pc
Model	10"	20"	30"
A: Total height (mm)	615	865	1115
B: The distance from inlet to center (mm)	110
C：Shell diameter (mm)	Φ101.6
D: The height from in-outlet (N1, N2) to ground (mm)	170
In-outlet N1, N2 size	1"
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

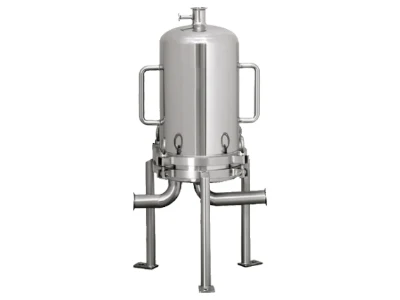

Multi Cartridge Sanitary Filter Housing

Multi-cartridge sanitary filter housing can meet the requirements of medium and small flow rates.
It features easy cleaning, thorough drainage, and no concerns about residual liquid.
For applications with some very harsh cleaning requirements, the filter housing faceplate is detachable to achieve full-angle cleaning.
The air release valve can be a quick-opening type, which allows for complete disassembly and ensures there are no dead corners during cleaning.
Small specification filter housings are equipped with an adjusting nut at the bottom feet, allowing adjustment of the filter's height for ease of use.

Specification

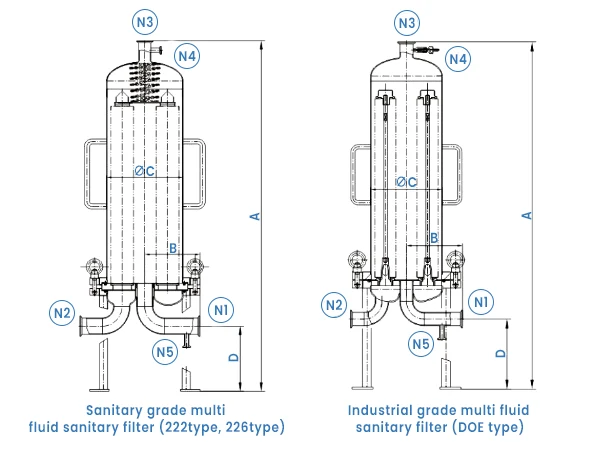

Annotated multi cartridge sanitary filter housing drawing

Read MoreRead Less

Table 2: Multi Cartridge Sanitary Filter Housing Parameters
Material
Shell					304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve					304
Eyebolt					304
O-ring					EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)					0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)					150 °C
Disinfect (sanitation)					Online or steam sterilization: 121 °C / 30 min
Connection
Connection of shell					Tri-clamp, flange
In-outlet N1, N2					Tri-clamp
N3 Pressure gauge (option)					1.5" tri-clamp
N4 Vent valve (option)					1/2" tri-clamp, M6 thread
N5 Drain valve (option)					1/2" tri-clamp
Cartridges connection					222, 226 (sanitation), DOE (industrial-grade)
Dimension Parameters
Model	3R (4R)					5R (6R)				7R (8R)
Model	10"	20"	30"	40"		10"	20"	30"	40"	10"	20"	30"	40"
A: Total height (mm)	760	1010	1260	1510		780	1030	1280	1530	805	1055	1305	1555
B: The distance from inlet to center (mm)	160					160				200
C：Shell diameter (mm)	φ204					φ235				φ273
D: The height from in-outlet(N1, N2) to ground (mm)	200					200				200
In-outlet N1, N2 size	1.5"					2"				2.5"
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

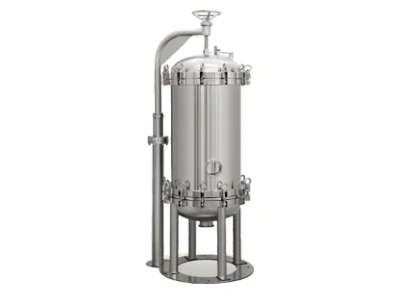

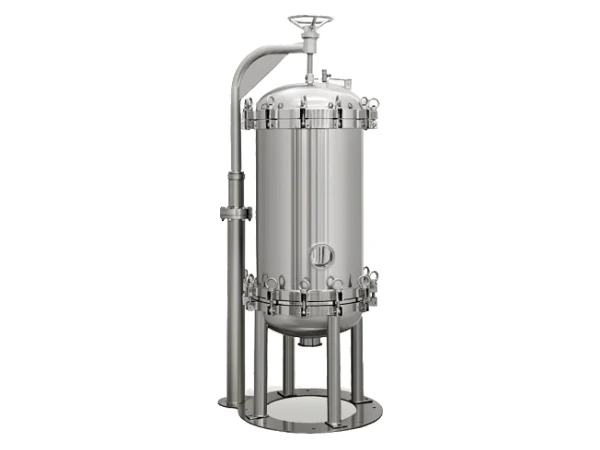

Precision Liquid Filter Housing

Precision liquid filter housing is a high-flow, multi-cartridge sanitary liquid filter housing that can meet the requirements of different sizes of flow rates.
It features easy cleaning, thorough drainage, and no concerns about residual liquid.
For applications with some very harsh cleaning requirements, the filter housing faceplate is detachable to achieve full-angle cleaning.
Dealing with large flows, its compact design saves space.
The design of side-in bottom-out ensures that particles can be completely removed. At the same time, the tangent outlet makes sewage discharged thoroughly, facilitating easy operation by workers.
For more than 15 cartridges filter housings, options include a swing arm and eyebolt or quick-open mechanisms, offering simple operation, and being economical and practical.

Specification

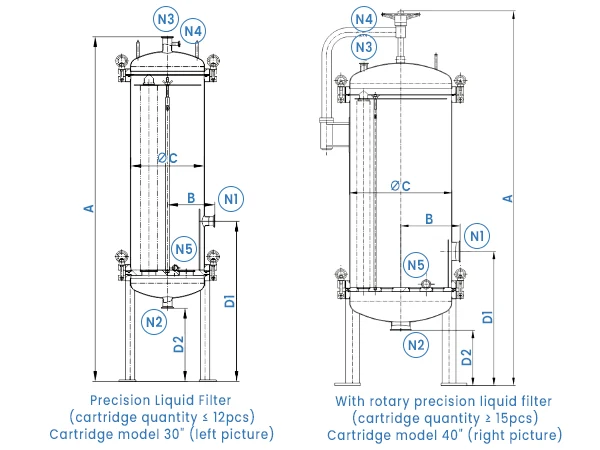

Annotated precision liquid filter housing drawing

Read MoreRead Less

Table 3: Precision Liquid Filter Housing Parameters
Material
Shell				304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve				304, 316L
Eyebolt				304
Stabilizer blade				304
O-ring				EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa)				0.6 Mpa, 1.0 Mpa
Max operating temperature (°C)				150 °C
Disinfect				Online or steam sterilization: 121 °C / 30 min
Connection
Connection of shell				Flange (eyebolt)
In-outlet N1, N2				Tri-clamp
N3 Pressure gauge (option)				1.5" tri-clamp
N4 Vent valve (option)				1/2" tri-clamp (less than 12 pcs), 1.5" tri-clamp (more than 15 pcs)
N5 Drain valve (option)				1/2" tri-clamp (3 pcs), 3/4" tri-clamp (5 pcs–12 pcs), 1" tri-clamp (more than 15 pcs)
Cartridges connection				222, 226
Dimension Parameters
Model		A: Total height (mm)	B: The distance from inlet to center (mm)		C：Shell diameter (mm)	D1: The height from inlet to ground (mm)	D2: The height from outlet to ground (mm)	In-outlet N1, N2 size
3R (4R)	20"	1123	142		φ204	540	300	1.5"/2"
	30"	1373
	40"	1623
5R (6R)	20"	1145	165		φ250	660	300	1.5"/2"/2.5"
	30"	1395
	40"	1645
7R	20"	1145	176.5		φ273	660	300	1.5"/2"/2.5"
	30"	1395
	40"	1645
8R	20"	1170	190		φ300	660	300	1.5"/2"/2.5"/3"
	30"	1420
	40"	1670
9R (10R)	20"	1170	202.5		φ325	660	300	1.5"/2"/2.5"/3"
	30"	1420
	40"	1670
11R (12R)	20"	1170	215		φ350	660	300	1.5"/2"/2.5"/3"
	30"	1420
	40"	1670
15R (18R)	40"	1947	240		φ400	682	300	3"/3.5"/4"
21R	40"	1959	265		φ450	694
24R (27/30R)	40"	2026	290		φ500	714
36R	40"	2036	315		φ550	729	300	3"/3.5"/4"
42R	40"	2044	340		φ600	734
48R (54R)	40"	2067	365		φ650	744
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.
