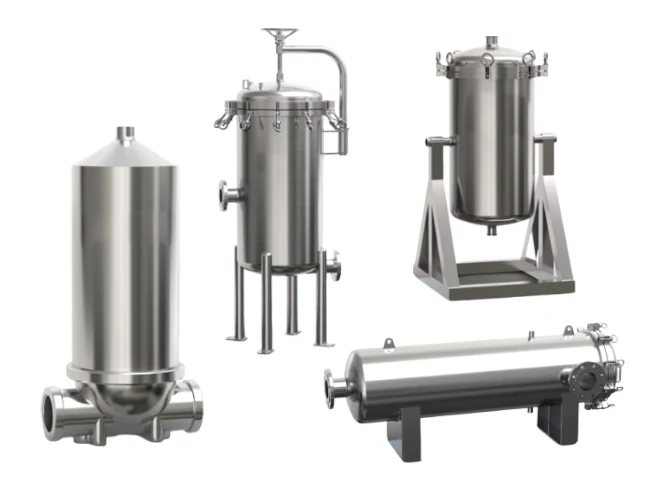

4 different types of industrial cartridge filter housings

Industrial Cartridge Filter Housing Meets Various Filtration Needs

The industrial cartridge filter housing is a highly efficient filtration device specifically designed for industrial applications. It utilizes precision filter elements as the medium to effectively remove particulate impurities from liquids or gases, ensuring the stability of the process flow and the quality of the products. Its design emphasizes durability and adaptability, making it widely applicable in industries such as chemical engineering, petroleum, electronics, and pharmaceuticals. It can withstand high temperatures, high pressures, and corrosive environments. The equipment is easy to maintain, offers high filter rating, and is suitable for various complex working conditions, making it a reliable filtration solution in industrial production.

  • Specification
  • Videos
Specification
  • A casting single cartridge filter housing on a gray background

    Casting Single Cartridge Filter Housing

  • An industrial precision liquid filter housing on a gray background

    Industrial Grade Precision Liquid Filter Housing

  • A high flow liquid filter housing on a gray background

    High Flow Liquid Filter Housing

  • A security filter housing on a white background

    Security Filter Housing

  • A swing titanium rod filter housing on a white background

    Swing Titanium Rod Fluid Filter Housing

  • A metal precision cartridge filter housing on a white background

    Metal Precision Cartridge Filter Housing

Casting Single Cartridge Filter Housing

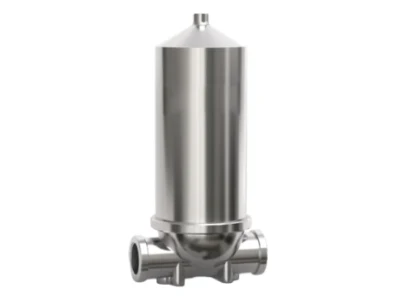

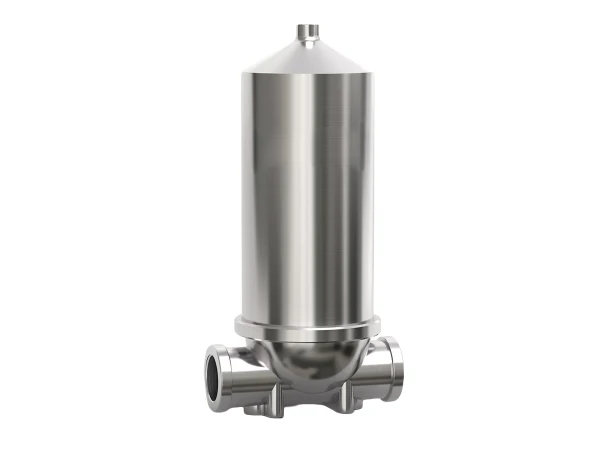

A casting single cartridge filter housing on a gray background
  • Single fluid industrial filter housing adopts an integrated casting top structure. Based on top in top out design, it is equipped with an adaptor, and can be directly connected to the pipeline, making the installation extremely easy.
  • The filter housing is sanitary grade, polishing precision Ra < 0.6 μm, suitable for many kinds of filter requirements.
  • Single fluid industrial filter housing adopts a very compact structure design, and the top can be fixed in the pipeline. When you exchange the cartridges, just open the filter housing. There is no liquid leakage in the whole process.
  • Drain valve at the bottom is convenient for operator to discharge liquid.
  • Safety seal design.

Specification

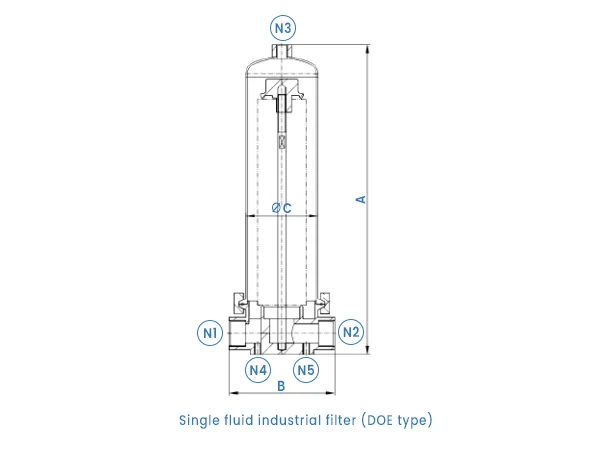

Annotated casting single cartridge filter housing drawing
Read MoreRead Less
Table 1: Casting Single Cartridge Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Drain Valve 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa, 1.0 Mpa
Max operating temperature (°C) 150 °C
Connection
Connection of shell Quick-open, screw thread
In-outlet N1, N2 1" thread
N3 Pressure gauge (option) 1/4" thread
N4 Vent valve (option) 1/4" thread
Cartridges connection DOE type
Dimension Parameters
Model 1R
10" 20" 30"
A: Total height (mm) 382 632 982
B: The distance from inlet to center (mm) 110
C:Shell diameter (mm) Φ101.6
In-outlet N1, N2 size 1" thread
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

Industrial Grade Precision Liquid Filter Housing

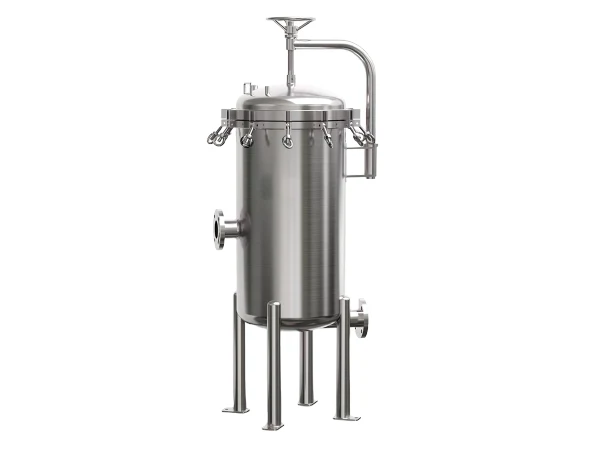

An industrial precision liquid filter housing on a gray background
  • Industrial grade precision liquid filter housing is a precision filter specially designed for industrial field. It can be applied in various chemical materials and meet the requirements of different flow.
  • Its top in bottom out flow method ensures that the material liquid does not overflow when replacing a cartridge in process.
  • The filter housing can be designed into three-stage structure. The shell can be opened from top and bottom, the filter can be absolutely disassemble. For the application with some very harsh cleaning requirements, the filter can achieve full angle cleaning.
  • Industrial grade precision liquid filter housings use many times polishing process, ensure that the material liquid contact surface Ra reached 0.6 μm close to the sanitary requirement, the filter polished is mirror polished. It can be applied in high precision liquid filtration.
  • Two drain outlets, respectively in the top of the faceplate and the bottom of the filter, making the discharge easy and complete.
  • For more than 15 cartridges filter housing, the swing arm and eyebolt or quick open are optional, simple operation, economical and practical.

Specification

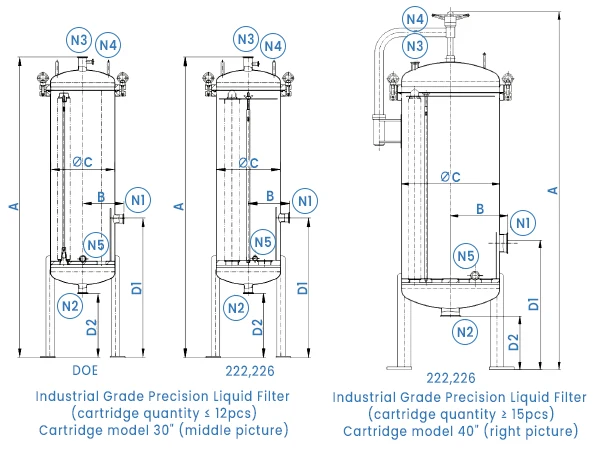

Annotated industrial precision liquid filter housing drawing
Read MoreRead Less
Table 2: Industrial Grade Precision Liquid Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve 304, 306L
Eyebolt 304
Stabilizer blade 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa, 1.0 Mpa
Max operating temperature (°C) 150 °C
Connection
Connection of shell Flange (eyebolt)
In-outlet N1, N2 Tri-clamp
N3 Pressure gauge (option) 1.5" tri-clamp
N4 Vent valve (option) 1/2" tri-clamp (less than 12 pcs), 1.5" tri-clamp (more than 15 pcs)
N5 Drain valve (option) 1/2" tri-clamp (3R), 3/4" tri-clamp (5 pcs–12pcs), 1" tri-clamp (more than 15 pcs)
Cartridges connection 222, 226, DOE
Dimension Parameters
Model A: Total height (mm) B: The distance from inlet to center (mm) C: Shell diameter (mm) D1: The height from inlet to ground (mm) D2: The height from outlet to ground (mm) In-outlet N1, N2 size
3R (4R) 20" 1123 142 φ204 540 300 1.5"/2"
30" 1373
40" 1623
5R (6R) 20" 1145 165 φ250 660 300 1.5"/2"/2.5"
30" 1395
40" 1645
7R 20" 1145 176.5 φ273 660 300 1.5"/2"/2.5"
30" 1395
40" 1645
8R 20" 1170 190 φ300 660 300 1.5"/2"/2.5"/3"
30" 1420
40" 1670
9R (10R) 20" 1170 202.5 φ325 660 300 1.5"/2"/2.5"/3"
30" 1420
40" 1670
11R (12R) 20" 1170 215 φ350 660 300 1.5"/2"/2.5"/3"
30" 1420
40" 1670
15R (18R) 40" 1947 240 φ400 682 300 3"/3.5"/4"
21R 40" 1959 265 φ450 694
24R (27/30R) 40" 2026 290 φ500 714
36R 40" 2036 315 φ550 729 300 3"/3.5"/4"
42R 40" 2044 340 φ600 734
48R(54R) 40" 2067 365 φ650 744
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

High Flow Liquid Filter Housing

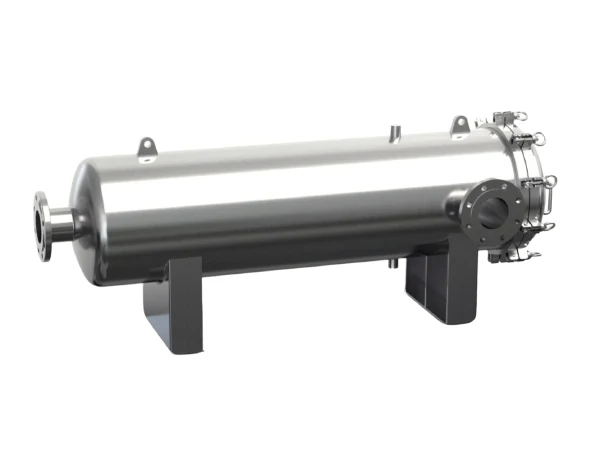

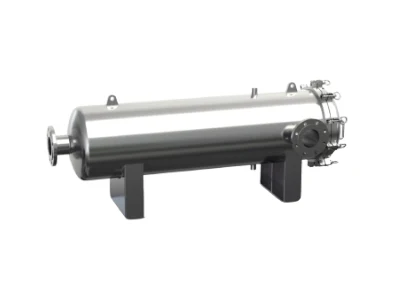

A high flow liquid filter housing on a gray background
  • High flow liquid filter housing, also known as big fat type housing, is specially designed for large diameter and high flow pipelines and mainly used in some high flow working conditions. It adopts pleated high flow filter cartridges, offering multiple filtration area than that of traditional perforated basket filter elements. Its over 50% open area and straight through structure deliver the highest flow rate and the lowest pressure difference, greatly lowering the overall dimensions and weight. As a result, it significantly reduces the investment input and operating costs, lowers the filter cartridge replacement frequency and saves labor resources.
  • Large flow liquid filter housings have two installation types: vertical and horizontal. 20" and 40" filters usually adopt vertical structure, while medium and large systems with a flow rate of more than 1000 t/h often chooses horizontal structure. It is equipped with 60" filter cartridge, meeting the high flow rate requirements. Besides, it also reduces the the number of times of cartridge replacement, making filter cartridge replacement more convenient.

Specification

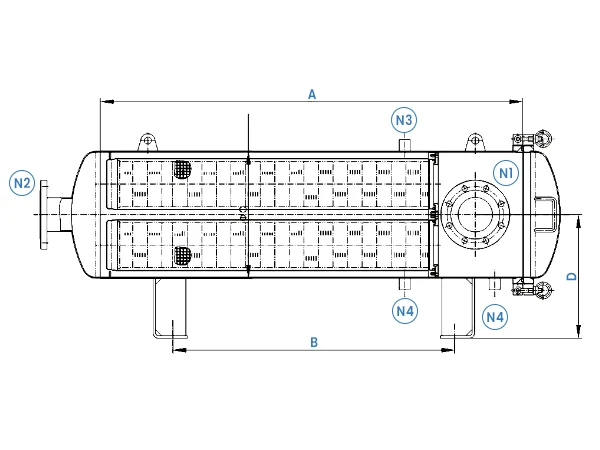

Annotated large flow liquid filter housing drawing
Read MoreRead Less
Table 3: Large Flow Liquid Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve 304, 306L
Eyebolt 304
Stabilizer blade 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa, 1.0 Mpa
Max operating temperature (°C) 150 °C
Connection
Connection of shell Flange
In-outlet N1, N2 Flange, tri-clamp
N3 Pressure gauge (option) G3/4" thread
N4 Vent valve (option) G1/2" thread
Dimension Parameters
Model A: Shell length (exclude head) (mm) B: Support center distance (mm) C: Shell diameter (mm) D: The height from in-outlet (N1, N2) to ground (mm) In-outlet N1, N2 size
1R 20" 700 300 φ230 355 2"/2.5"/3"
40" 1200 600
60" 1700 900
2R 20" 800 400 φ400 395 3"/4"/5"
30" 1300 700
40" 1800 1000
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

Security Filter Housing

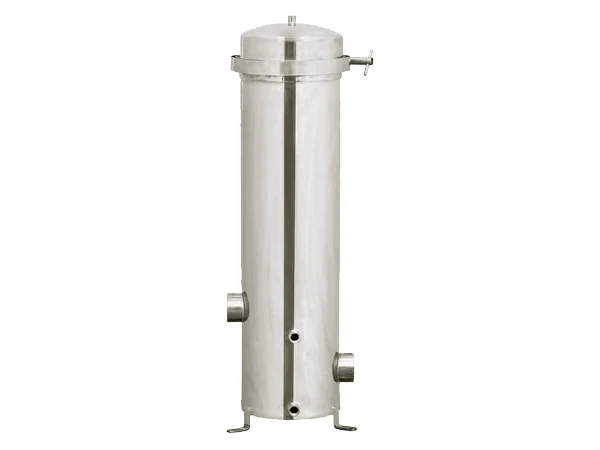

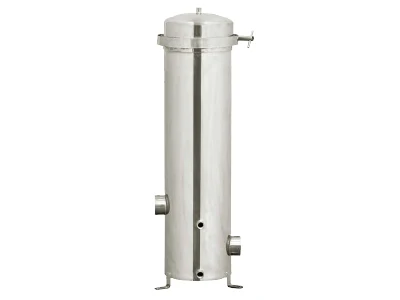

A security filter housing on a white background
  • Security filter housing is mainly designed for water treatment field.
  • It uses multiple polishing process and ensures that the surface Ra reaching 0.6 μm up to the sanitary grade requirement. The filter surface is mirror polished and can be applied in high precised liquid filtration.
  • The filter housing has top and bottom drain valve which drain liquid conveniently and quickly.
  • Cartridge sealing surface uses spring type sealing. It's easy to operate.

Specification

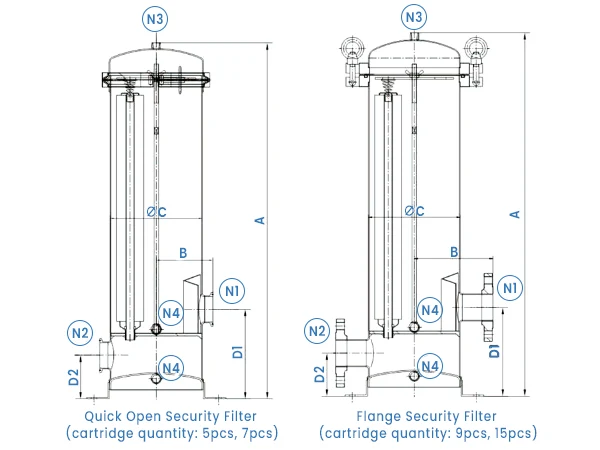

Annotated security filter housing drawing
Read MoreRead Less
Table 4: Security Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve 304、306L
Eyebolt 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa
Max operating temperature (°C) 140 °C
Connection
Connection of shell Tri-clamp, flange (eyebolt)
In-outlet N1, N2 Flange, tri-clamp, thread
N3 Pressure gauge (option) 1.5" tri-clamp
N4 Vent valve (option) 1" tri-clamp, thread
Cartridges connection DOE, 222
Dimension Parameters
Model A: Total height (mm) B: The distance from inlet to center (mm) C: Shell diameter (mm) D1: The height from inlet to ground (mm) D2: The height from outlet to ground (mm) In-outlet N1, N2 size
5R (4R) 10" 570 175 (Flange),125 (Tri-clamp),130 (Thread) φ204 178 76 2"
20" 820
30" 1070
40" 1320
7R 20" 820 190 (Flange),140 (Tri-clamp),145 (Thread) φ235 178 76 2"
30" 1070
40" 1320
Note: The dimension parameters data is the standard, it can customize according to customer's requirements.

Swing Titanium Rod Fluid Filter Housing

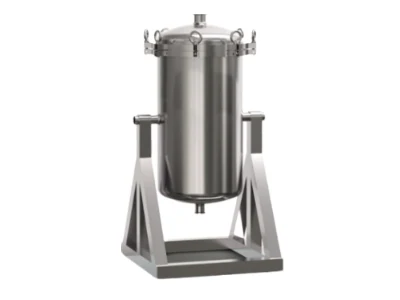

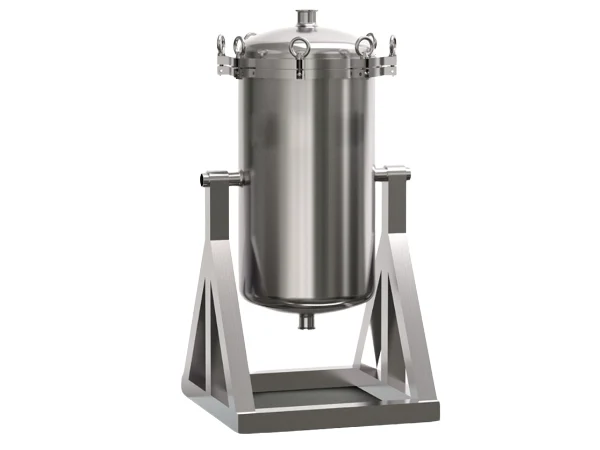

A swing titanium rod filter housing on a white background
  • Swing titanium rod housing is specially designed for the feed liquid with high solid content of impurities. With metal titanium cartridge or stainless steel cartridge, it can achieve an excellent effect of solid liquid separation. The filter shell can turn 180°, the solid impurity on the outside surface of cartridge can be drained completely.
  • The filter housings are all made of high quality 304 or 316L stainless steel materials. The whole shell is connected by flange. It is generally used in coarse filtration or intermediate filtration.
  • It can remove discolored water, unpleasant odors, and heavy metals such as mercury, lead, zinc, iron, manganese, and chromium. It also eliminates high molecular compounds such as arsenic, hydrides, sulfides, and residual chlorine, as well as radioactive substances such as strontium and radium. Additionally, it removes and kills bacteria, E.coli, and other carcinogenic substances in water. It is widely used in industries such as food and beverage, pharmaceuticals, and chemicals for solid-liquid separation, and is especially suitable for de-carbon filtration in the infusion injection production lines in the pharmaceutical industry.

Specification

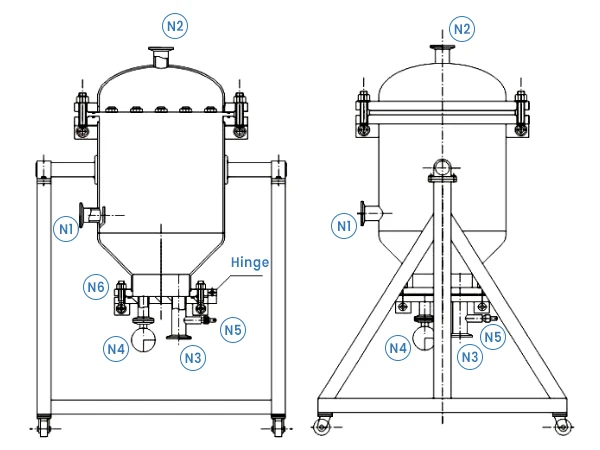

Annotated swing titanium rod-filter housing drawing
Read MoreRead Less
Table 5: Swing Titanium Rod Fluid Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve 304、306L
Eyebolt 304
Stabilizer blade 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa
Max operating temperature (°C) 200 °C
Connection
Connection of shell Flange (eyebolt)
In-outlet N1, N2 Flange, tri-clamp, thread
N3 Drain valve (option) Tri-clamp
N4 Pressure gauge (option) Tri-clamp
N5 Vent valve (option) Thread
N6 Discharge valve Quick opening flange with hinges

Metal Precision Cartridge Filter Housing

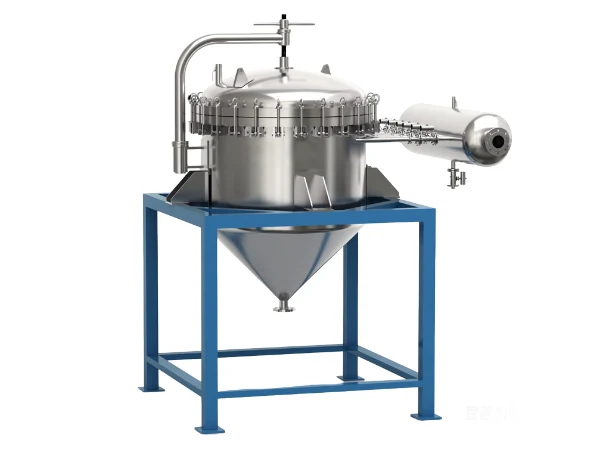

A metal precision cartridge filter housing on a white background
  • Metal precision filter housing is suitable for filtering high temperature and high pressure, high solid content of materials. Filter using reverse cleaning method, can achieve continuous automation operation, to avoid the frequent manual cleaning and unnecessary shutdown, and maximal decrease the pollution of filter material and the residual liquid to the environment.
  • It can remove discolored water, unpleasant odors, and heavy metals such as mercury, lead, zinc, iron, manganese, and chromium. It also eliminates high molecular compounds such as arsenic, hydrides, sulfides, and residual chlorine, as well as radioactive substances such as strontium and radium. Additionally, it removes and kills bacteria, E.coli, and other carcinogenic substances in water. It is widely used in industries such as food and beverage, pharmaceuticals, and chemicals for solid-liquid separation, and is especially suitable for de-carbon filtration in the infusion injection production lines in the pharmaceutical industry.

Specification

Annotated metal precision cartridge filter housing drawing
Read MoreRead Less
Table 6: Metal Precision Cartridge Filter Housing Parameters
Material
Shell 304, 316L, Duplex SS, Titanium, Hastelloy
Vent/Drain valve 304、306L
Eyebolt 304
Stabilizer blade 304
O-ring EPDM, PTFE, Viton, Silione
Operating Conditions
Max. operating pressure (Mpa) 0.6 Mpa
Max operating temperature (°C) 200 °C
Connection
Connection of shell Flange (eyebolt)
In-outlet Flange, tri-clamp, thread
Drain valve Tri-clamp
Pressure gauge (option) Thread, tri-clamp
Vent valve Thread
Slagging Pneumatic control self-locking type discharge door, quick loading
