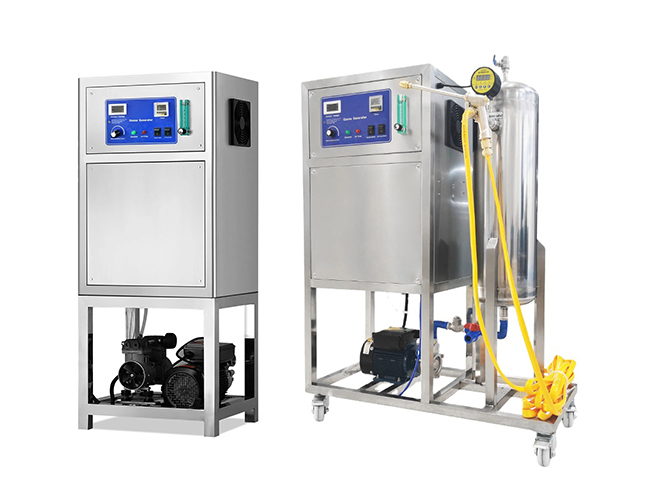

Ozone Generator for Water Treatment – Efficiently Purify Water Quality

Ozone generators for water treatment are commonly used in the pretreatment or post-treatment stages of water treatment. For specific effects, it depends on water quality and treatment requirements.

In the pretreatment stage, ozone generators are typically used to improve water quality and pretreat water sources. They can effectively remove organic substances, bacteria, viruses, and other pollutants in water, while oxidizing and degrading hard-to-decompose organic compounds, thereby improving the water quality.

In the post-treatment stage, ozone generators are usually used to further enhance water quality and eliminate residual pollutants. After ozone treatment, water quality is significantly improved, with organic matter and microorganisms effectively removed. This results in water meeting higher health and safety standards, while issues with odor and color are noticeably improved.

Specifications
Applications
Videos

Specification

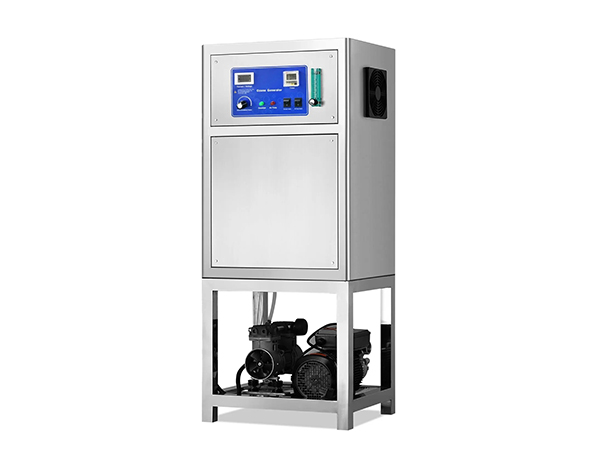

High-concentration ozone water machine with mixing pump
High concentration ozone water system with mixing tank

Ozone generator with oxygen source and mixing pump

Ozone output ranges from 10 G to 30 G.
Used for drinking water, bottled water, industrial wastewater treatment, and swimming pool circulating water treatment, etc.
Air cooling + Water cooling is adopted to ensure the stable operation of the equipment for a long time
The body is made of stainless steel material, corrosion-resistant and oxidation-resistant.
Anti-backflow protection device, built-in self-priming gas-liquid mixing pump
Adjustable ozone output water flow
Over-temperature, over-voltage, and over-current protection
High ozone water concentration

Technical Specifications

Read MoreRead Less

Table 1: Technical Specifications of High-Concentration Ozone Water Machine with Mixing Pump
Model	SW-OWS-10G	SW-OWS-20G	SW-OWS-30G
Ozone Output	10 G	20 G	30 G
Power (W)	800	1200	1300
Ozone Concentration (ppm)	1–3	1–4	1–5
Treat Water Flow Rate (m³/h)	0.4–2.8	1–3.5	1–3.5
Dimensions (cm)	50 × 40 × 110	50 × 40 × 131	50 × 40 × 140
Packing Size (cm)	41 × 51 × 120 (wooden box)	61 × 51 × 137 (wooden box)	51 × 61 × 160 (wooden box)
NW/GW (kg)	52/66	64/84	70/92
Voltage	220V/50Hz
Gas Feeding	Oxygen source

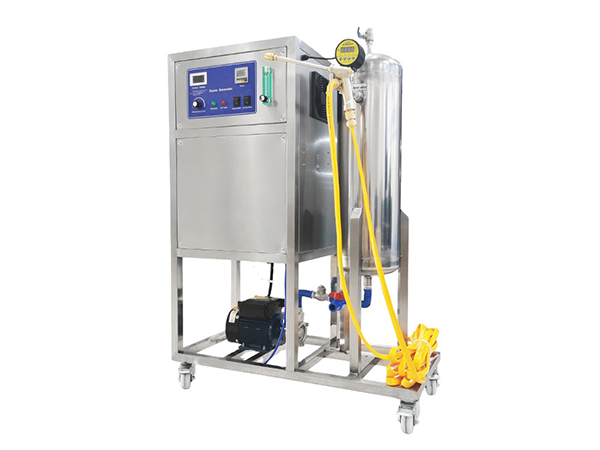

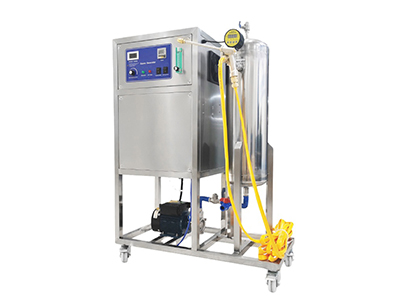

Ozone generator with oxygen source and mixing tank

Ozone output is 10 G – 30 G
Used for cleaning various farms, eliminating odors in space, reducing bacterial growth, and providing environmental hygiene for farms
Air cooling + Water cooling is adopted to ensure the stable operation of the equipment for a long time.
The body is made of stainless steel, corrosion-resistant and oxidation-resistant.
Anti-backflow protection device, built-in self-priming gas-liquid mixing pump
Adjustable ozone output water flow
The whole machine is movable, easy to operate, just connect it to the water inlet.
The high-pressure spray gun has high pressure, reducing labor costs
Safe and hygienic, no residue, no secondary pollution, replacing chemical disinfectants

Technical Specifications

Read MoreRead Less

Table 2: Technical Specifications of High Concentration Ozone Water System with Mixing Tank
Model	SW-SOWS-10G	SW-SOWS-20G	SW-SOWS-30G
Ozone Output	10 G	20 G	30 G
Power (W)	800	1200	1300
Ozone Concentration (ppm)	1–3	1–4	1–5
Treat Water Flow Rate (m³/h)	0.4–2.8	1–3.5	1–3.5
Dimensions (cm)	90 × 40 × 110	90 × 40 × 131	90 × 40 × 140
Packing Size (cm)	101 × 51 × 120 (wooden box)	101 × 51 × 137 (wooden box)	101 × 61 × 160 (wooden box)
NW/GW (kg)	70/84	82/104	96/118
Voltage	220V/50Hz
Gas Feeding	Oxygen source

Applications

Drinking Water Treatment: In water treatment plants and facilities for drinking water, ozone generators serve to eliminate organic substances, eradicate bacteria and viruses, thereby enhancing water safety and taste.
Swimming Pool Water Treatment: In indoor and outdoor swimming pools, ozone generators can disinfect and oxidize water, effectively killing bacteria, viruses, and algae, and maintaining water cleanliness.
Industrial Water Treatment: In industrial production processes, ozone generators can be used to treat industrial wastewater, recycled water, and cooling water, remove organic matter and odors, and purify water quality.
Sewage Treatment: In sewage treatment plants and sewage pipeline systems, ozone generators can oxidize and decompose organic matters and pollutants in sewage, and improve treatment efficiency and water quality.

Videos

Downloads

Here are product catalogue and data sheet for your reference. more information just contact us.
