Several different types of UF membrane on white background.

Ultrafiltration Membrane Retains the Original Trace Elements & Minerals in the Water

FUF modules are made with high strength hollow fiber PVDF with 0.03 μm pore size. It offers high tolerance to chemical cleaning. Ultrafiltration (UF) provides excellent retention performance to particles, suspended solids, colloidal material, bacteria and viruses.

PVDF modules are used in a variety of applications including municipal water, drinking water, power plants, petrochemical, reverse osmosis pretreatment for desalination plants and high purity water.

*Equivalent modules can be customized on customers' request.

  • Specification
  • Features
  • Working Process
  • Videos
Specification
A UF membrane with union joint and coupling joint. Standard Model

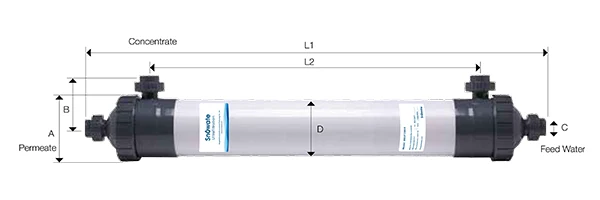

A drawing shows the standard model of UF membrane with union joint.

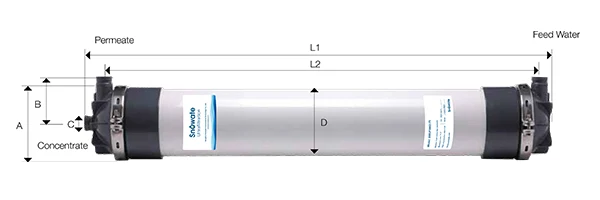

A drawing shows the standard model of UF membrane with coupling joint.
Table 1: standard Model
Module Model SWFUF4040U SWFUF6040U SWFUF8060U SWFUF8040C SWFUF 8060C SWFUF 1060C
Membrane Surface Area (m2/ft2) 8/86.11 25/269.10 60/645 40/430.55 55/592 75/807.29
Hollow Fiber Material PVDF
Pore Size (μm) 0.03 0.03 0.03 0.03 0.03 0.03
I.D./O.D. (mm/inch) 0.7 (0.027) / 1.3 (0.051)
Flow Direction Outside-in
L1 (mm/inch) 1,225/48.23 1,410/55.51 1,882/74.09 1,295/50.98 1,670/65.75 1,670/65.75
L2 (mm/inch) 1,025/40.35 1,045/41.14 1,473/57.99 1,200/47.24 1,595/62.80 1,595/62.80
D (mm/inch) 90/3.54 160/6.30 200/7.87 200/7.87 200/7.87 250/9.84
A (mm/inch) 110/4.33 195/7.68 240/9.45 235/9.25 235/9.25 290/11.42
C* In/Outlet Connector DN25 DN32 DN40 DN50 DN50 DN50
Housing Material UPVC
Joint Material UPVC UPVC UPVC Stainless Steel Stainless Steel Stainless Steel
Sealant Epoxy Resin
Max. Feed Pressure (MPa/psi) 0.3/43.52
Operation Flux (L/H) 400–1,200 1,250–3,750 3,000–9,000 2,000–6,000 2,750–8,250 3,750–11,250
Max.TMP (MPa/psi) 0.2/29.01
Operation Temp (°C/°F) 5–40 / 41–104
pH Range 2.0–12.0 2.0–12.0 2.0–12.0 2.0–12.0 2.0–12.0 2.0–12.0
Max. Turbidity (NTU) 300 300 300 300 300 300
Permeate Turbidity ≤0.1
Permeate SDI ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0
Max. Continuous Chlorine (ppm) 1,000 (available chlorine concentration)
Backwash Flux (L/H) 600–800 1,900–2,500 4,500–6,000 3,000–4,000 4,200–5,500 5,500–7,500
Scouring Air Flux (Nm3/H) 0.6–1.0 1.5–3 4–6 3–5 4–6 6–9
A SWFUF6060U UF membrane with union joint and coupling joint. SWFUF6060U
A drawing shows the parameter of SWFUF6060U UF membrane.
Table 2: SWFUF6060U
Module Model SWFUF6060U
Membrane Surface Area(m2/ft2) 40/430.56
Hollow Fiber Material PVDF
Pore Size (μm) 0.03
Fiber I.D./O.D. (mm/inch) 0.7 (0.027) / 1.3(0.051)
Flow Direction Outside-in
Filtration Mode Dead-end or Cross-flow Filtration
L1 (mm/inch) 1,816/71.5
L2 (mm/inch) 1,386/54.6
D (mm/inch) 160/6.3
A (mm/inch) 223/8.78
B (mm/inch) 173/6.8
C* In/Outlet Connector DN40/1.5"
Housing Material UPVC
Joint Material UPVC
Sealant Epoxy Resin
Operation Flux @25°C (lmh/fgd) 40–120 / 24–71
Design Flux per Module (m³/h or gpm) 2.0–4.0 / 8.8–17.6
Max. Feed Pressure @20°C (bar/psi) 3.0/43.5
△ TMP Range (bar/psi) 0–2.0 / 0–29
Max. Backwash Pressure (bar/psi) 0–2.0 / 0–29
Operation Temp. (°C/°F) 5–40 / 41–104
Operation pH Range 2.0–12.0
Backwash Flux (m³/h) 3.0–4.0
Max. Tolerance Turbidity (NTU) 300
Max. NaOCl Tolerance Concentration (ppm) 1,000 (available chlorine concentration)
Max. SS Tolerance Concentration (ppm) 100
Permeate Turbidity (NTU) ≤0.1
Permeate SDI ≤2.5

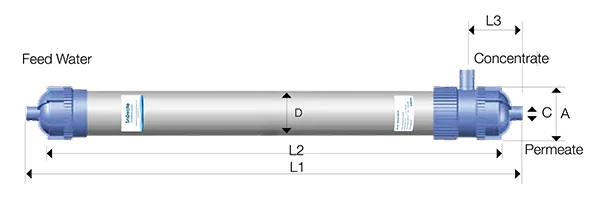

A SWFUF9070/90CA UF membrane with union joint and coupling joint. SWFUF9070/90CA
A drawing of SWFUF9070CA and SWFUF9090CA UF membrane.
Table 3: SWFUF9070/90CA
Module Model SWFUF9070CA SWFUF9090CA
Membrane Surface Area(m2/ft2) 51/549 77/829
Hollow Fiber Material PVDF
Pore Size (μm) 0.03
Fiber I.D. / O.D. (mm/inch) 0.7 (0.027) / 1.3 (0.051)
Flow Direction / Filtration Mode Outside-in / Dead-end or Cross-flow Filtration
L (mm/inch) 1,860/73.2 2,360/92.9
L1 (mm/inch) 1,500/59.1 2,000/78.7
L2 (mm/inch) 1,630/64.2 2,130/83.9
L3 (mm/inch) 1,820/71.7 2,320/91.3
D (mm/inch) 225/8.9 225/8.9
W1 / W2 (mm/inch) 180 (7.1) / 342 (13.5) 180 (7.1 ) / 342 (13.5)
Housing / Joint Material UPVC / Stainless Steel
Sealant Epoxy Resin
Operation Flux @25°C (lmh/fgd) 40-120 / 24-71
Design Flux per Module (m³/h or gpm) 2.0–6.0 / 8.8–26.4 3.0–9.0 / 13.2–39.6
Max. Feed Pressure @20°C (bar/psi) 3.0/43.52 3.0/43.52
△ TMP Range (bar/psi) 0–2.1/0–30
Max. Backwash Pressure (bar/psi) 2.5/36
Operation Temp. (°C/°F) 5–40 / 41–104
Operation pH Range 2.0–12.0
Backwash Flux (m³/h) 3.0–4.0 4.0–6.0
Max. Tolerance Turbidity (NTU) 300
Max. NaOCl Tolerance Concentration (ppm) 2,000 (available chlorine concentration)
Max. SS Tolerance Concentration (ppm) 100
Permeate Turbidity (NTU) 0.1
Permeate SDI ≤ 2.5
A SWFUF1050/70/90C UF membrane with union joint and coupling joint. SWFUF1050/70/90C
A drawing of SWFUF1050/7090C UF membrane.
Table 8: SWFUF1050/70/90C
Module Model SWFUF1050C SWFUF1070C SWFUF1090C
Effective Membrane Area (m2) 52 78 105
Hollow Fiber Material PVDF PVDF PVDF
Pore Size (μm) 0.03 0.03 0.03
Fiber I.D. / O.D. (mm) 0.7 (0.027) / 1.3 (0.051)
Filtration Mode Outside-in
L (mm) 1,364.9 1,832.6 2,340.6
L1 (mm) 1,257.3 1,724.7 2,232.7
L2 (mm) 1,135.5 1,602.9 2,110.9
L3 (mm) 172 172 172
D1 (mm) 250 250 250
D2 (mm) 290 290 290
Inlet / Outlet / Concentrate Port DN 50 DN 50 DN 50
Housing Material UPVC UPVC UPVC
Joint Material UPVC UPVC UPVC
Sealant Epoxy Resin Epoxy Resin Epoxy Resin
Max. Inlet Pressure (bar) 3.0 3.0 3.0
Design Flux (LMH / m³/h) 34–110 / 1.8–5.5 34–110 / 2.7–8.6 34–110 / 3.6–11.6
Max. △ TMP (bar) 2 2 2
Operation Temp. (°C) 5–40 5–40 5–40
pH Range 2–10 2–10 2–10
Permeate Turbidity (NTU) ≤0.1 ≤0.1 ≤0.1

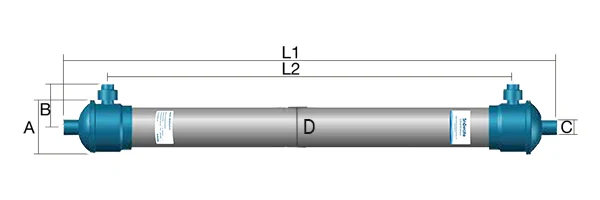

A SWFUFX6590 UF membrane with union joint and coupling joint. SWFUFX6590
A drawing of SWFUFX6590 UF membrane.
Table 4: SWFUFX6590
Module Model SWFUFX6590
Membrane Surface Area (m2/ft2) 50/538.6
Hollow Fiber Material PVDF
Pore Size (μm) 0.03
Fiber I.D. / O.D. (mm/inch) 0.7 (0.027) / 1.3 (0.051)
Flow Direction / Filtration Mode Outside-in / Dead-end or Cross-flow Filtration
L1 (mm/inch) 2,340–2,420 / 92.13–95.28
L2 (mm/inch) 1,907–1,987 / 75.08–78.23
D (mm/inch) 160/6.30
A (mm/inch) 215/8.46
C (Inlet/Outlet) DN50
Housing Material UPVC
Joint Material UPVC
Sealant Epoxy Resin
Operation Flux @25°C (lmh/fgd) 40–120 / 24–70
Design Flux per Module (m³/h or gpm) 2.0–6.0 / 8.8–26.4
Max. Feed Pressure @20°C (kPa/psi) 250/36
△ TMP Range (kPa/psi) 0-210 / 0–30
Operation Temp. (°C/°F) 5–40 / 41-104
Operation pH Range 2.0–10.0
Max. Air Scouring Flux (Nm3/h) 3–5
Max. Backwash Flux (m³/h) 3–4
Max. Cleaning Temp. (°C) 40
Max. NaOCl Tolerance Concentration (ppm) 1,000 (available chlorine concentration)
Cleaning pH Range 2.0–12
Permeate Turbidity (NTU) ≤0.1
Permeate SDI ≤2.5
A SWFUFG7080 UF membrane with union joint and coupling joint. SWFUFG7080
A drawing of SWFUFG70800 UF membrane.
Table 5: SWFUFG7080
Module Model SWFUFG7080
Membrane Surface Area (m2/ft2) 55.70/600
Hollow Fiber Material PVDF
Pore Size (μm) 0.03
Fiber ID / OD (mm/inch) 0.7 (0.027) / 1.3 (0.051)
Flow Direction Outside-in
L1 (mm/inch) 1,920/75.59
L2 (mm/inch) 1,760/69.29
L3 (mm/inch) 216/8.50
D (mm/inch) 180/7.09
A (mm/inch) 213/8.38
Housing Material UPVC
Joint Material UPVC
Sealant Epoxy Resin
Operation Flux @25°C (lmh/fgd) 40–120 / 24–71
Design Flux per Module (m³/h or gpm) 2.2–6.7 / 6.68–29.48
Max. Feed Pressure @20°C (kPa/psi) 380/55
△ TMP Range (kPa/psi) 0–276 / 0–40
Operation Temp. (°C/°F) 5–40 / 41–104
Working pH Range 5.0–10.0
Max. Scouring Air Flux (Nm3/h) 5.1
Max. Backwash Flux (m³/h) 1.8
Max. Cleaning Temp. (°C) 40
Max. NaOCl Tolerance Concentration (ppm) 1,000 (available chlorine concentration)
Cleaning pH Range 2.0–12
Permeate Turbidity (NTU) ≤0.1
Permeate SDI ≤2.5
A SWFUF8584N UF membrane with union joint and coupling joint. SWFUF8584N
A drawing of SWFUF8584N UF membrane.
Table 6: SWFUF8584N
Module Model SWFUF8584N
Membrane Surface Area (m2/ft2) 55/592
Hollow Fiber I.D. / O.D. (mm) 0.7/1.3
Pore Size (μm) 0.03
Tensile Force (N) 11–12
Housing / End Caps Material PVC
Sealant Epoxy Resin
Dimensions D2 × L1 (mm/inch) 260 × 2,130 / 10.24 × 83.86
Feed Inlet (NPT) 1.5"
Permeate Outlet (NPT) 1.5"
Reject Outlet (NPT) 1.0"
Flow Direction Outside-in
Wet Weight (kg/lbs) 95/209
Dry Weight (kg/lbs) 55/121
Design Flux (LMH / m³/h) 30–136 / 1.75–7.5
Max. Feed Pressure (bar) 4.0
Max. △ TMP (bar) 2.1
Max. Backwash Pressure (bar) 2.5
Operation Temp. (°C) 1–40
Operation pH 1–11
Cleaning pH 1–13
Air Scouring Flux (Nm3/h) 5–12
Max. Air Scouring Pressure 2.5
Backwash Flux @30°C (LMH) 200
Max. Continuous Chlorine (ppm) 200
Max. Cleaning NaOCl (ppm) 500
Max. Continuous NaOCl (ppm) 10
Max. Feed TSS (ppm) 100
Max. Inlet Turbidity (NTU) 300
Permeate TSS (ppm) ≤0.5
Permeate Turbidity (NTU) ≤0.1
Permeate SDI ≤3.0
A SWFUF8584U UF membrane with union joint and coupling joint. SWFUF8584U
A drawing of SWFUF8584U UF membrane.
Table 7: SWFUF8584U
Module Model SWFUF8584U
Membrane Surface Area (m2/ft2) 55/592
Hollow Fiber I.D. / O.D. (mm) 0.7/1.3
Pore Size (μm) 0.03
Tensile Force (N) 11–12
Housing / End Caps Material PVC
Sealant Epoxy Resin
Dimensions D2 × L1 (mm/inch) 344 × 2,340 / 13.54 × 92.13
Feed Inlet (NPT) 1.5"
Permeate Outlet (NPT) 1.5"
Reject Outlet (NPT) 1.5"
Flow Direction Outside-in
Wet Weight (kg/lbs) 95/209
Dry Weight (kg/lbs) 55/121
Design Flux (LMH / m³/h) 30–136 / 1.75–7.5
Max. Feed Pressure (bar) 4.0
Max. △ TMP (bar) 2.1
Max. Backwash Pressure (bar) 2.5
Operation Temp. (°C) 1–40
Operation pH 1–11
Cleaning pH 1–13
Air Scouring Flux (Nm3/h) 5–12
Max. Air Scouring Pressure 2.5
Backwash Flux @30°C (LMH) 200
Max. Continuous Chlorine (ppm) 200
Max. Cleaning NaOCl (ppm) 500
Max. Continuous NaOCl (ppm) 10
Max. Feed TSS (ppm) 100
Max. Inlet Turbidity (NTU) 300
Permeate TSS (ppm) ≤0.5
Permeate Turbidity (NTU) ≤0.1
Permeate SDI ≤3.0
Features
  • Performance
    • 0.03 μm pore size guarantees stable permeate
    • Modified hydrophilic PVDF membrane with easy wetting performance
    • High tolerance to varying influent water qualities
    • Reduced pretreatment requirements due to outside-in flow
    • High chemical resistance
    • Energy saving due to low operating pressure
    • Standard models allow for easy retrofits
  • Applications
    • Reverse osmosis pretreatment system
    • Municipal wastewater treatment
    • NSF potable water treatment
    • Industrial wastewater treatment
    • Wastewater recycle
    • Surface and groundwater treatment
Working Process

In the process of UF membrane filtration, the pressure difference on both sides of the membrane is used as a driving force and UF membrane as the filter media. According to the inlet position and UF membrane structure, it can be divided into inside-out UF membranes and outside-in UF membranes.

The structure diagram of feed water flows in the inside-out UF membrane

Inside-Out UF Membrane

Feed water enters the the hollow fiber membrane from the inlet. Under the action of pressure difference, water and small molecules flow to the surface of the UF membrane through the dense micro pores and become the permeate, and then flows out from the side port of the UF membrane. The substances larger than the micro-pores in the feed water are retained on the surface of the membrane and become concentrate, and then flows out from the other end.

The structure diagram of feed water flows in the outside-in UF membrane

Outside-In UF Membrane

Feed water enters the center tube of the UF membrane module from one end and flows through the surface of the hollow fiber membrane. Under the action of pressure difference, water and small molecules flow to the inside of the UF membrane through the dense micro pores and become the permeate, and then flows out from the other end of the UF membrane. The substances larger than the micro-pores in the feed water are retained on the surface of the membrane and become concentrate, and then flows out from the side port.

Videos
Downloads

Here are product catalogue and data sheet for your reference. more information just contact us.
