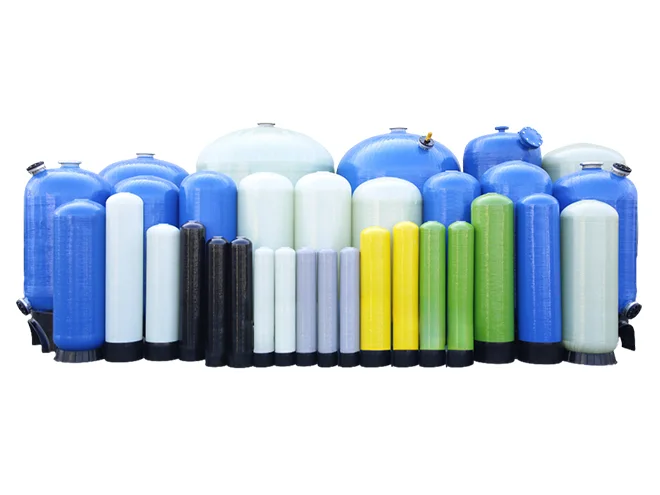

Several universal FRP tanks.

Universal FRP Tanks– ISO 9001, NSF & CE Certified

Universal FRP tank is a kind of non-metallic composite tank reinforced by winding resin and glass fiber together through microcomputer controlled machine. Common colors are original and blue. It comes in a full range of sizes with a diameter of 6"–80" and a height of 10"–79"; It is NSF and CE certified. Both colors and models can be customized upon request.

Universal FRP tanks are equipped with an upper opening and a lower opening (except for 2.5" and part of 4") to facilitate medium loading and unloading.

  • Specification
  • Structure
  • Features
  • Video
Specification
Read MoreRead Less
Specification of Universal FRP Tanks
Model (inch) Diameter × Height (mm) Package Dimensions (m) Capacity (L) 100 PSI Packed Weight (kg) 150 PSI Packed Weight (kg)
610-2.5" 166 × 259 0.166 × 0.166 × 0.259 3.2 0.9±0.1 1.0±0.1
613-2.5" 166 × 346 0.166 × 0.166 × 0.346 4.7 1.2±0.1 1.4±0.1
617-2.5" 166 × 437 0.166 × 0.166 × 0.437 6.5 1.5±0.2 1.7±0.2
618-2.5" 166 × 462 0.166 × 0.166 × 0.462 7 1.5±0.2 1.7±0.2
629-2.5" 166 × 741 0.166 × 0.166 × 0.741 12 2.0±0.2 2.2±0.2
635-2.5" 166 × 894 0.166 × 0.166 × 0.894 14.8 2.2±0.3 2.4±0.3
713-2.5" 188 × 335 0.188 × 0.188 × 0.335 5.9 1.4±0.1 1.5±0.1
717-2.5" 188 × 437 0.188 × 0.188 × 0.437 8.3 1.7±0.2 1.8±0.2
724-2.5" 188 × 625 0.188 × 0.188 × 0.625 12.4 2.1±0.2 2.2±0.2
730-2.5" 188 × 777 0.188 × 0.188 × 0.777 16.1 2.4±0.2 2.6±0.2
735-2.5" 188 × 894 0.188 × 0.188 × 0.894 18.8 2.7±0.3 3.0±0.3
744-2.5" 188 × 1124 0.188 × 0.188 × 1.124 24.2 3.2±0.3 3.4±0.3
813-2.5" 215 × 338 0.338 × 0.215 × 0.215 8 1.6±0.1 1.7±0.1
817-2.5" 215 × 437 0.437 × 0.215 × 0.215 11 1.8±0.2 1.9±0.2
824-2.5" 215 × 625 0.625 × 0.215 × 0.215 16.8 2.3±0.2 3.0±0.2
835-2.5" 215 × 895 0.895 × 0.215 × 0.215 25.2 3.0±0.3 3.2±0.3
844-2.5" 215 × 1125 1.125 × 0.215 × 0.215 32.5 3.7±0.3 4.0±0.3
917-2.5" 240 × 455 0.455 × 0.24 × 0.24 13.8 2.3±0.2 2.4±0.2
935-2.5" 240 × 900 0.9 × 0.24 × 0.24 31.1 3.6±0.3 3.7±0.3
942-2.5" 240 × 1073 1.073 × 0.24 × 0.24 37.8 4.5±0.4 4.6±0.4
948-2.5" 240 × 1225 1.225 × 0.24 × 0.24 43.7 4.9±0.4 5.1±0.4
1017-2.5" 266 × 429 0.429 × 0.266 × 0.266 16.4 2.7±0.2 2.8±0.2
1019-2.5" 266 × 494 0.494 × 0.266 × 0.266 18.8 3.0±0.3 3.2±0.2
1024-2.5" 266 × 622 0.622 × 0.266 × 0.266 25 3.5±0.3 3.5±0.3
1035-2.5" 266 × 896 0.896 × 0.266 × 0.266 38.8 4.2±0.4 4.4±0.4
1044-2.5" 266 × 1135 1.135 × 0.266 × 0.266 50 5.0±0.4 5.4±0.4
1054-2.5" 266 × 1380 1.38 × 0.266 × 0.266 62.5 6.0±0.4 6.2±0.4
1054-2.5"-2.5" 266 × 1522 1.522 × 0.266 × 0.266 62.5 6.6±0.4 7.0±0.4
1236-2.5" 318 × 920 0.92 × 0.318 × 0.318 55.6 5.0±0.5 5.7±0.5
1248-2.5" 318 × 1233 1.233 × 0.318 × 0.318 77.5 6.0±0.5 7.1±0.5
1252-2.5" 318 × 1333 1.333 × 0.318 × 0.318 85.3 7.5±0.5 7.9±0.5
1265-2.5" 318 × 1663 1.663 × 0.318 × 0.318 108.5 9.0±0.5 9.3±0.5
1344-2.5" 343 × 1100 1.1 × 0.343 × 0.343 81.1 7.0±0.6 8.9±0.6
1354-2.5" 343 × 1350 1.35 × 0.343 × 0.343 102.3 8.0±0.6 9.8±0.6
1452-2.5" 369 × 1336 1.336 × 0.369 × 0.369 115.3 9.4±0.8 11.0±0.8
1452-4" 369 × 1336 1.336 × 0.369 × 0.369 115.3 9.4±0.8 11.0±0.8
1465-2.5" 369 × 1661 1.661 × 0.369 × 0.369 146.8 10.6±0.8 13.4±0.8
1465-4" 369 × 1661 1.661 × 0.369 × 0.369 146.8 10.6±0.8 13.4±0.8
1465-4"-4" 359 × 1850 1.85 × 0.359 × 0.359 146.8 11.2±0.8 14.0±0.8
1652-2.5" 428 × 1325 1.325 × 0.428 × 0.428 150.1 11.3±1 13.2±1
1652-4" 428 × 1325 1.325 × 0.428 × 0.428 150.1 11.3±1 13.2±1
1665-2.5" 428 × 1668 1.668 × 0.428 × 0.428 191.7 13.8±1 15.9±1
1665-4" 428 × 1668 1.668 × 0.428 × 0.428 191.7 13.8±1 15.9±1
1665-4"-4" 418 × 1877 1.877 × 0.418 × 0.418 191.7 14.9±1 16.8±1
1836-4" 465 × 920 0.92 × 0.465 × 0.465 118.1 9.0±1.5 11.0±1.5
1853-4" 465 × 1350 1.35 × 0.465 × 0.465 186.5 14.0±1.5 17.0±1.5
1865-4" 465 × 1655 1.655 × 0.465 × 0.465 235 16.0±1.5 20.0±1.5
1865-4"-4" 465 × 1873 1.873 × 0.465 × 0.465 235 18.0±1.5 22.0±1.5
2069-4" 512 × 1770 1.77 × 0.512 × 0.512 307 20.0±2 27.0±2
2069-4"-4" 512 × 1955 1.955 × 0.512 × 0.512 307 22.0±2 29.0±2
2136-4" 543 × 940 0.94 × 0.543 × 0.543 164.4 13.0±2 17.0±2
2153-4" 543 × 1370 1.37 × 0.543 × 0.543 257.9 18.0±2 22.0±2
2162-4" 543 × 1600 1.6 × 0.543 × 0.543 307.8 21.0±2 27.0±2
2162-4"-4" 543 × 1750 1.750 × 0.543 × 0.543 307.8 23.0±2 29.0±2
2465-4"-4" 614 × 1920 1.92 × 0.614 × 0.614 409.4 32.0±3 39.0±3
2472-4" 614 × 1884 1.884 × 0.614 × 0.614 460.5 35.0±3 41.0±3
2472-4"-4" 614 × 2080 2.08 × 0.614 × 0.614 460.5 37.0±3 43.0±3
3065-4"-4" 765 × 1855 1.855 × 0.765 × 0.765 616.4 49.0±4 54.0±4
3072-4" 765 × 1844 1.844 × 0.765 × 0.765 696.1 56.0±4 55.0±4
3072-4"-4" 765 × 2035 2.035 × 0.765 × 0.765 696.1 58.0±4 57.0±4
3065-6"-6" 765 × 2060 2.06 × 0.765 × 0.765 616.4 57.0±4 61.0±4
3072-6"-6" 765 × 2240 2.24 × 0.765 × 0.765 718.9 65.0±4 64.0±4
3665-4"-4" 909 × 1910 1.91 × 0.909 × 0.909 860 63.0±5 78.0±5
3672-4"-4" 909 × 2090 2.09 × 0.909 × 0.909 969.2 69.0±5 84.0±5
3665-6"-6" 909 × 1980 1.98 × 0.909 × 0.909 860 68.0±5 83.0±5
3672-6"-6" 909 × 2160 2.16 × 0.909 × 0.909 969.2 74.0±5 89.0±5
4065-4"-4" 1000 × 1950 1.95 × 1 × 1 1087.1 83.0±7 97.0±7
4065-6"-6" 1000 × 2040 2.04 × 1 × 1 1087.1 88.0±7 102.0±7
4079-4"-4" 1000 × 2310 2.31 × 1 × 1 1257.5 100.0±7 113.0±7
4079-6"-6" 1000 × 2360 2.36 × 1 × 1 1257.5 105.0±7 118.0±7
4272-6"-6" 1070 × 2200 2.2 × 1.07 × 1.07 1387.5 96.0±8 112.0±8
4872-6"-6" 1217 × 2260 2.26 × 1.217 × 1.217 1751.3 122.0±10 137.0±10
4894-6"-6" 1217 × 2400 2.4 × 1.217 × 1.217 1910
6079-6"-6" 1500 × 2425 2.425 × 1.5 × 1.5 3011.5 197.0±13 227.0±13
6367-6"-6" 1609 × 2110 2.11 × 1.609 × 1.609 2629.8 194.0±15 223.0±15
6386-6"-6" 1609 × 2460 2.46 × 1.609 × 1.609 3424.5 220.0±15 265.0±15
7279-6"-6" 1800 × 2605 2.605 × 1.8 × 1.8 4610.3 310.0±18 407
Structure
Universal FRP tank components as well as upper port and base shapes

Universal FRP tanks are generally composed of upper opening, lower opening (except for 2.5" and part of 4"), tank body and a base.

  • Opening
    • PPO material, thread connection (2.5" and 4")
    • Aviation aluminum, flange connection (6")
  • Base
    • Standard base: reinforce plastic (tank size: 6"–16");
    • Round base: reinforced plastic (tank size: 18"–21");
    • Tripod base: FRP (tank size: 24"–80")
    • Some models will have adjustments.
Features
  • Unique dust-proof design, 2.5"/4" FRP tanks are provided with bead cotton dust cover,; 6" flange FRP tanks are equipped with a dust cover.
  • If the tank is provided with an upper port, materials are loaded and unloaded from the upper port; if it is provide with an upper port and a lower port, materials are loaded from the upper port and unloaded from the lower port.
  • Our FRP tanks are ISO 9001 and CE certified.
  • Colors and models can be customized upon request.
