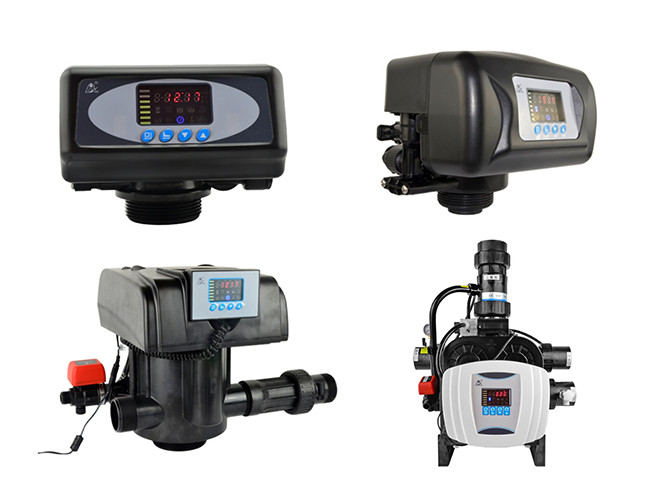

Four different types of Runxin automatic softener valves.

Runxin Automatic Softening Valves for Efficient and Cost Saving Softening System

Runxin automatic softening valve is the core controller of the water softening system, the general operation process is: running, backwash, brine, slow wash, brine refill, wash.

The Runxin softener control valve, LED or LCD display screen, covers 1-50m3/h water production, It is widely used in homes, companies, factories, schools, troops and other places for water Softening, with strong applicability and practicality.

  • Specification
  • Working Process
  • Features
  • Video
Specification
Read MoreRead Less
Table 1: Popular Models & Data Sheet of Runxin Automatic Softener Control Valves
Model Water Capacity Running Model Regeneration Type Mount Type Inlet/Outlet Drain Brine Tank Connector Base Riser Pipe Available Tank Size Working Pressure Water Temperature Turbidity Input Charge Output Charge
63502 (F65B1) 2 m3/h Time Clock Downflow Top Mount 3/4"F 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–10" 0.15–0.6 MPa 5–45 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63602 (F65B3) Meter
63502B (F65G1) 2 m3/h Time Clock Downflow Top Mount 3/4"F 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–10" 0.15–0.6 MPa 5–45 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63602B (F65G3) Meter
73502 (F69A1) 2 m3/h Time Clock Upflow Top Mount 3/4"F 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–10" 0.15–0.6 MPa 5–45 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73602 (F69A3) Meter
73502B (F69G1) 2 m3/h Time Clock Upflow Top Mount 3/4"F 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–10" 0.15–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73602B (F69G3) Meter
63503 (F117A1) 2 m3/h Time Clock Downflow Top Mount 3/4"F 3/4"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–10" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63603 (F117A3) Meter
63504 (F63C1) 4 m3/h Time Clock Downflow Top Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63604 (F63C3) Meter
63504B (F63G1) 4 m3/h Time Clock Downflow Top Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63604B (F63G3) Meter
63504C (F63I1) 4 m3/h Time Clock Downflow Side Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63604C (F63I3) Meter
63504S (F63B1) 4 m3/h Time Clock Downflow Top Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63604S (F63B3) Meter
73504 (F68C1) 4 m3/h Time Clock Upflow Top Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73604 (F68C3) Meter
73504B (F68G1) 4 m3/h Time Clock Upflow Top Mount 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73604B (F68G3) Meter
73504S (F68A1) 4 m3/h Time Clock Upflow Top Mount with handwheel 1"M 1/2"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73604S (F68A3) Meter
63505 (F116A1) 4 m3/h Time Clock Downflow Top Mount 1"M 3/4"M 3/8"M 2.5"-8NPSM 1.05" O.D. 6"–14" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63605 (F116A3) Meter
63505E (F116E3) 5 m3/h Meter Downflow Top Mount 1"M 3/4"M 3/8"M 2.5"-8NPSM 1.05" O.D. 10"–20" 0.15-0.6 MPa 5-50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63605E (F130A3) 5 m3/h Meter Downflow Top Mount 1"M NPT 3/4" 3/8"M 2.5"-8NPSM 1"D-GB 7"–22" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
73505 (F92A1) 4.7 m3/h Time Clock Upflow Top Mount 1"M 3/4"M 3/8"M 2.5"-8NPSM 1"D-GB 9"–16" 0.15–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 12V/2.0A
73605 (F92A3) Meter
73605E (F92E3) 5 m3/h Meter Upflow Top Mount 1"M NPT 3/4" 3/8"M 2.5"-8NPSM 1"D-GB 7"–22" 0.15–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 12V/1.5A
63508 (F133A1) 8 m3/h Time Clock Downflow Top Mount 1.5"M 3/4"M 1/2"M 4"-8UN 1.25"D-GB or 1.66" O.D. 16"–18" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63608 (F133A3) Meter
63510 (N74A1) 10 m3/h Time Clock Downflow Top Mount 2"M 1"M 1/2"M 4"-8UN 1.5"D-GB or 1.9" O.D. 20"–21" 0.2–0.6 MPa 5–45 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63610 (N74A3) Meter
63510B (N74B1) 10 m3/h Time Clock Downflow Top/Side Mount 2"M 1"M 1/2"M 4"-8UN 1.5"D-GB or 1.9" O.D. 20"–21" 0.2–0.6 MPa 5–45 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63610B (N74B3) Meter
63515 (F99A1) 15 m3/h Time Clock Downflow Top/Side Mount 2"M 1.5"M 3/4"M 4"-8UN 1.5"D-GB or 1.9" O.D. 30" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63615 (F99A3) Meter
73515 (F99D1) 15 m3/h Time Clock Upflow Top/Side Mount 2"M 1.5"M 3/4"M 4"-8UN 1.5"D-GB or 1.9" O.D. 30" 0.2–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
73615 (F99D3) Meter
63518 (N77A1) 18 m3/h Time Clock Downflow Top/Side Mount 2"M 1.5"M 3/4"M 4"-8UN 1.5"D-GB or 1.9" O.D. 30"–36" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63618 (N77A3) Meter
63520 (F95A1) 21.6 m3/h Time Clock Downflow Side Mount 2"M 1.5"M 3/4"M - Side mount, top and bottom distributor 2"M 36"–40" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63620 (F95A3) Meter
63520T (F111A1) 21.1 m3/h Time Clock Downflow Top Mount 2"M 1.5"M 3/4"M 4"-8UN 2"D-GB 36"–40" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
63620T (F111A3) Meter
73520 (F95D1) 21.6 m3/h Time Clock Upflow Side Mount 2"M 1.5"M 3/4"M - Side mount, top and bottom distributor 2"M 36"–40" 0.2–0.6 MPa 5–50 °C < 2 FTU AC 100V – 240V / 50–60 Hz DC 24V/1.5A
73620 (F95D3) Meter
63540B (F112A1) 40 m3/h Time Clock Downflow Side Mount DN65 DN65 3/4"M - Side mount, top and bottom distributor DN80 40"–48" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/4.0A
63640B (F112A3) Meter
63550 (F96A1) 50 m3/h Time Clock Downflow Side Mount DN80 DN80 3/4"M - Side mount, top and bottom distributor DN100 60"–63" 0.2–0.6 MPa 5–50 °C < 5 FTU AC 100V – 240V / 50–60 Hz DC 24V/4.0A
63650 (F96A3) Meter
Working Process

The flow is based on fixed bed softening system.

  • Stage 1: Regenerate (Manual Backwash)

    Start the backwash process, the raw water enters the control valves from water inlet and enters the FRP tanks along the central pipe and bottom distributor. Then the resins floating under water pressure and the resin impurities are removed along the water, then the water will discharge along the top distributor and discharge port.

  • Stage 2: Regenerate

    The raw water enters the control valve from water inlet and enters the brine ejector. The waters flows towards the ejector outlet in a fast speed and produce negative pressure. The brine is drawn into the tanks and flows through the resin layer along the central pipe and bottom distributor to achieve resin regeneration. Then rare water is discharge from the discharge port.

  • Stage 3: Slow wash

    The brine ball valve closed, raw water enters control valve from inlet and enters the tanks through ejector and continue to slow wash the resin layer along the central pipe and bottom distributor to eliminate the resin impurities and brine. Then the water is discharge from the discharge port.

  • Stage 4: Wash

    Raw water enters control valve from inlet and enters the tanks through top distributor and flows towards the resin layer with a large mount of water to thoroughly flush the resin layer and residual brine, then the impurities and residual brine will be discharge out from the discharge port.

  • Stage 5: Filling water and softening

    Raw water enters control valve through inlet and brine ball valve opened at the same time. The water enters the brine tank and filling water. When completing filling, it will star to softening. The raw water enters the control valve from water inlet and enters the FRP tank and resin layer through the top distributor, the softened water is flow along the center pipe and drainage from the outlet. The softening process is complete.

Automatic filter valve working and it's matched position.
Features
  • Structure and Performance Features
    • LED display, indication of long time power off and data saved after power off (Saved for three days).
    • No hard water bypass in rising cycle.
    • With signal output connector and two modes (b-01 or b-02) are optional.
    • Can set rinsing frequency F-00, realizing one time service and several times of backwash and fast rinse.
    • With remote control connector to receive passive signals.
    • With interlock connector to realize service simultaneously and rinse one by one.
    • Start rising by days or hours.
    • N77, F95 and F111 have two valve cores, one is for controlling inlet water, the other is for outlet water.
    • Time clock type or meter type is optional.
    • N77/F95 with RS-485 port are optional.
  • Applications
    • Residential Softener Systems (F63/F65/F68/F69).
    • Softener for RO pretreatment System.
    • Boiler Softening System, lon exchange system.
  • Remark
    • The model with a “S" means the valve with manual operation function.
    • N77,F95,F111 brine refilled while service, brine refilling controlled by electronic ball valve.
    • F63, F65, F68 and F69 have a variety of appearances optional.
    • N74B is optional which can be top or side-mounted.
Videos
Downloads

Here are product catalogue and data sheet for your reference. more information just contact us.
