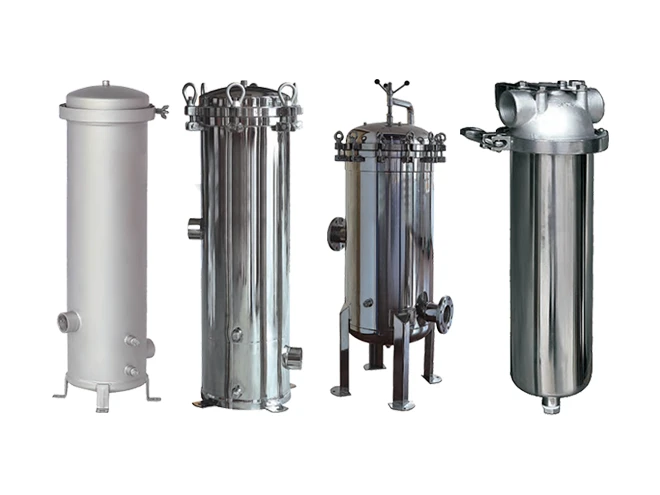

Cartridge Type Stainless Steel Precision Filter

Precision/Security Filter Housing

Cartridge Type Stainless Steel Precision Filter

Cartridge-Type Stainless Steel Precision Filter Accommodates Up To 160 Filter Elements

The cartridge-type stainless steel precision filter typically consists of one or more filter elements. The internally installed microporous pleated membrane filter elements, melt-blown filter elements, or string-wound filter elements all belong to deep filtration, capable of providing higher levels of filtration and purification. They can remove smaller particles and suspended solids and also have a good removal effect on dissolved substances.

Specification
Working Principle
Structure
Videos

Specification

SCC-Clamp Type
SCB-Eyebolts Type
SCBL-Eyebolts Type with Leg
SCBA-Swing Arm Type
SCF-Flange Type
SCS-Single Type

SCC-Clamp Type

Body Material: Stainless steel (SUS304, SUS316L).
Working pressure: 100 PSI.
Operating temperature: 5–40 °C.
Design temperature: 5–90 °C.
Replace pressure: 0.05–0.07 MPa.
Filtration accuracy: 1–100 μm.
Cartridge Quantity: 3/5/7 elements, etc.
Cartridge filter Length: 10"–40".
Enclosure Type: Clamp.
Port type: Thread.
Surface finish: Sandblast, mirror electrolytic polishing.
Seal type: O-ring or flat washer.
Filter interface: Flat compression, plug-in.
Sealing material: NBR, EPDM, Silicone, Fluoroelastomer optional

Drawings & Dimensions

A drawing of BN1 series cartridge type stainless steel precision filters.

Table 1: SCC-Clamp Type Cartridge Filter Housing
Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	In/Out	Drain
SCC-3L1	120	220	600	ɸ170	ɸ219	230	1"–1-1/2"	1/4"–1/2"
SCC-3L2	120	220	850	ɸ170	ɸ219	230	1"–1-1/2"	1/4"–1/2"
SCC-3L3	120	220	1,100	ɸ170	ɸ219	230	1"–2"	1/4"–1/2"
SCC-3L4	120	220	1,350	ɸ170	ɸ219	230	1"–2"	1/4"–1/2"
SCC-5L1	120	220	610	ɸ200	ɸ248	260	1"–1-1/2"	1/4"–1/2"
SCC-5L2	120	220	860	ɸ200	ɸ248	260	1"–1-1/2"	1/4"–1/2"
SCC-5L3	120	220	1,110	ɸ200	ɸ248	260	1"–2"	1/4"–1/2"
SCC-5L4	120	220	1,360	ɸ200	ɸ248	260	1"–2"	1/4"–1/2"
SCC-7L1	120	220	620	ɸ250	ɸ310	310	1-1/2"–2"	1/2"
SCC-7L2	120	220	870	ɸ250	ɸ310	310	1-1/2"–2"	1/2"
SCC-7L3	120	220	1,120	ɸ250	ɸ310	310	1-1/2"–2-1/2"	1/2"
SCC-7L4	120	220	1,370	ɸ250	ɸ310	310	1-1/2"–2-1/2"	1/2"

SCB-Eyebolts Type

Body Material: Stainless steel (SUS304, SUS316L).
Working pressure: 150 PSI.
Operating temperature: 5–40 °C.
Design temperature: 5–90 °C.
Replace pressure: 0.05–0.07 MPa.
Filtration accuracy: 1–100 μm.
Cartridge Quantity: 5/7/11/15/20/27 elements, etc.
Cartridge filter Length: 30"-40".
Enclosure Type: Swing bolt.
Port type: Thread.
Surface finish: Sandblast, mirror electrolytic polishing.
Seal type: O-ring or flat washer.
Filter interface: Flat compression, plug-in.
Sealing material: NBR, EPDM, Silicone, Fluoroelastomer optional

Drawings & Dimensions

A drawing of BN3 series cartridge type stainless steel precision filters

Table 2: SCB-Eyebolts Type Cartridge Filter Housing
Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	In/Out	Drain
SCB-5L3	80	180	1,090	ɸ200	ɸ248	344	1-1/2"–2"	1/2"
SCB-5L4	80	180	1,340	ɸ200	ɸ248	344	1-1/2"–2"	1/2"
SCB-7L3	120	600	1,160	ɸ250	ɸ310	410	1-1/2"–2"	1/2"
SCB-7L4	120	800	1,410	ɸ250	ɸ310	410	1-1/2"–2"	1/2"
SCB-11L3	150	600	1,170	ɸ300	ɸ360	460	2"–3"	1/2"
SCB-11L4	150	800	1,420	ɸ300	ɸ360	460	2"–3"	1/2"
SCB-15L3	150	600	1,180	ɸ350	ɸ410	530	2"–3"	3/4"
SCB-15L4	150	800	1,430	ɸ350	ɸ410	530	2"–3"	3/4"
SCB-20L3	150	600	1,190	ɸ400	ɸ460	560	2"–4"	3/4"
SCB-20L4	150	800	1,440	ɸ400	ɸ460	560	2"–4"	3/4"
SCB-27L3	150	600	1,200	ɸ450	ɸ510	630	2"–4"	3/4"
SCB-27L4	150	800	1,450	ɸ450	ɸ510	630	2"–4"	3/4"

SCBL-Eyebolts Type with Leg

One SCBL-Eyebolts type of cartridge filter housing with leg

Body Material: Stainless steel (SUS304, SUS316L).
Working pressure: 150 PSI.
Operating temperature: 5–40 °C.
Design temperature: 5–90 °C.
Replace pressure: 0.05–0.07 MPa.
Filtration accuracy: 1–100 μm.
Cartridge Quantity: 5/7/11/15/20/27 elements, etc.
Cartridge filter Length: 30"-40".
Enclosure Type: Swing bolt.
Port type: Flange.
Surface finish: Sandblast, mirror electrolytic polishing.
Seal type: O-ring or flat washer.
Filter interface: Flat compression, plug-in.
Sealing material: NBR, EPDM, Silicone, Fluoroelastomer optional.

Drawings & Dimensions

A drawing of BN4 series cartridge type stainless steel precision filters.

Table 3: SCBL-Eyebolts Type Cartridge Filter Housing With Leg
Model	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	H (mm)	In/Out	Drain
SCBL-5L3	250	600	1,250	ɸ200	150	340	1-1/2"–2"	1/2"
SCBL-5L4	250	700	1,500	ɸ200	150	340	1-1/2"–2"	1/2"
SCBL-7L3	300	700	1,300	ɸ250	150	390	1-1/2"–2"	1/2"
SCBL-7L4	300	800	1,550	ɸ250	150	390	1-1/2"–2"	1/2"
SCBL-11L3	360	700	1,380	ɸ300	200	440	2"–3"	1/2"
SCBL-11L4	360	900	1,620	ɸ300	200	440	2"–3"	1/2"
SCBL-15L3	380	800	1,420	ɸ350	200	530	2"–3"	3/4"
SCBL-15L4	380	900	1,660	ɸ350	200	530	2"–3"	3/4"
SCBL-20L3	400	800	1,460	ɸ400	200	560	2"–4"	3/4"
SCBL-20L4	400	900	1,700	ɸ400	200	560	2"–4"	3/4"
SCBL-27L3	460	800	1,530	ɸ450	250	630	2"–4"	3/4"
SCBL-27L4	460	1,000	1,770	ɸ450	250	630	2"–4"	3/4"

SCBA-Swing Arm Type

One SCCA-Swing arm type of cartridge filter housing

Body Material: Stainless steel (SUS304, SUS316L)
Working Pressure: 150 PSI
Operating Temperature: 5–40 °C
Design Temperature: 5–90 °C
Replace Pressure: 0.05–0.07 MPa
Filtration Accuracy: 1–100 μm
Cartridge Quantity: 30/36/40/50/60/75/80/90/100/120/140/160 elements, etc.
Cartridge Filter Length: 30"–40"
Enclosure Type: Swing bolt hinged
Port Type: Flange
Surface Finish: Sandblast, mirror electrolytic polishing
Seal Type: O-ring or flat washer
Filter Interface: Flat compression, plug-in
Sealing Material: NBR, EPDM, Silicone, Fluoroelastomer optional

Drawings & Dimensions

A drawing of BN5 series cartridge type stainless steel precision filters.

Table 4: SCBA-Swing Arm Type Cartridge Filter Housing
Model	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	H (mm)	In/Out	Drain
SCBA-30L3	480	900	1,740	ɸ500	250	660	2"–4"	1"
SCBA-30L4	480	1,100	1,990	ɸ500	250	660	2"–4"	1"
SCBA-36L3	500	900	1,780	ɸ550	250	710	2.5"–4"	1"
SCBA-36L4	500	1,100	2,030	ɸ550	250	710	2.5"–4"	1"
SCBA-40L3	560	1,000	1,850	ɸ600	300	760	2-1/2"–4"	1"
SCBA-40L4	560	1,200	2,100	ɸ600	300	760	2-1/2"–4"	1"
SCBA-50L3	580	1,000	1,880	ɸ650	300	810	3"–4"	1"
SCBA-50L4	580	1,200	2,130	ɸ650	300	810	3"–4"	1"
SCBA-60L3	590	1,000	1,900	ɸ700	300	880	3"–5"	1"
SCBA-60L4	590	1,200	2,150	ɸ700	300	880	3"–5"	1"
SCBA-75L3	610	1,000	1,950	ɸ750	300	950	3"–5"	1-1/2"
SCBA-75L4	610	1,250	2,200	ɸ750	300	950	3"–5"	1-1/2"
SCBA-80L3	620	1,100	1,970	ɸ800	300	1,000	4"–6"	1-1/2"
SCBA-80L4	620	1,250	2,220	ɸ800	300	1,000	4"–6"	1-1/2"
SCBA-90L3	650	1,100	2,140	ɸ850	300	1,000	4"–6"	1-1/2"
SCBA-90L4	650	1,250	2,390	ɸ850	300	1,000	4"–6"	1-1/2"
SCBA-100L3	670	1,100	2,070	ɸ900	300	1,140	4"–6"	1-1/2"
SCBA-100L4	670	1,350	2,320	ɸ900	300	1,140	4"–6"	1-1/2"
SCBA-120L3	750	1,200	2,170	ɸ1000	350	1,240	4"–6"	1-1/2"
SCBA-120L4	750	1,400	2,420	ɸ1000	350	1,240	4"–6"	1-1/2"
SCBA-140L3	830	1,300	2,350	ɸ1100	350	1,400	4"–6"	2"
SCBA-140L4	830	1,500	2,600	ɸ1100	350	1,400	4"–6"	2"
SCBA-160L3	860	1,300	2,400	ɸ1200	350	1,500	6"–10"	2"
SCBA-160L4	860	1,500	2,650	ɸ1200	350	1,500	6"–10"	2"

SCF-Flange Type

Body Material: Stainless steel (SUS304, SUS316L).
Working pressure: 150 PSI.
Operating temperature: 5–40 °C.
Design temperature: 5–90 °C.
Replace pressure: 0.05–0.07 MPa.
Filtration accuracy: 1–100 μm.
Cartridge Quantity: 5/7/11/15/20/27/30/36/40/50/60/75/80/90/100/120/140/160 elements, etc.
Cartridge filter Length: 30"-40".
Enclosure Type: Flange
Port type: Flange.
Surface finish: Sandblast, mirror electrolytic polishing.
Seal type: O-ring or flat washer.
Filter interface: Flat compression, plug-in.
Sealing material: NBR, EPDM, Silicone, Fluoroelastomer optional.

Drawings & Dimensions

A drawing of BN6 series cartridge type stainless steel precision filters.

Table 5: SCF-Flange Type Cartridge Filter Housing
Model	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	In/Out	Drain
SCF-5L3	75	180	1,060	ɸ200	320	1"–2"	1/4"
SCF-5L4	75	180	1,310	ɸ200	320	1"–2"	1/4"
SCF-7L3	80	180	1,120	ɸ250	390	1-1/2"–2"	1/2"
SCF-7L4	80	180	1,370	ɸ250	390	1-1/2"–2"	1/2"
SCF-11L3	150	600	1,170	ɸ300	440	2"–3"	1/2"
SCF-11L4	150	800	1,420	ɸ300	440	2"–3"	1/2"
SCF-15L3	150	600	1,180	ɸ350	490	2"–3"	3/4"
SCF-15L4	150	800	1,430	ɸ350	490	2"–3"	3/4"
SCF-20L3	150	600	1,190	ɸ400	560	2"–4"	3/4"
SCF-20L4	150	800	1,440	ɸ400	560	2"–4"	3/4"
SCF-27L3	150	600	1,200	ɸ450	610	2"–4"	3/4"
SCF-27L4	150	800	1,450	ɸ450	610	2"–4"	3/4"
SCF-30L3	150	600	1,220	ɸ500	660	2"–4"	1"
SCF-30L4	150	800	1,470	ɸ500	660	2"–4"	1"
SCF-36L3	150	600	1,240	ɸ550	730	2-1/2"–4"	1"
SCF-36L4	150	800	1,490	ɸ550	730	2-1/2"–4"	1"
SCF-40L3	150	700	1,320	ɸ600	760	2-1/2"–4"	1"
SCF-40L4	150	900	1,570	ɸ600	760	2-1/2"–4"	1"
SCF-50L3	150	700	1,330	ɸ650	830	3"–4"	1"
SCF-50L4	150	900	1,580	ɸ650	830	3"–4"	1"
SCF-60L3	150	700	1,340	ɸ700	880	3"–5"	1"
SCF-60L4	150	900	1,590	ɸ700	880	3"–5"	1"
SCF-75L3	200	700	1,360	ɸ750	950	3"–5"	1-1/2"
SCF-75L4	200	900	1,610	ɸ750	950	3"–5"	1-1/2"
SCF-80L3	200	700	1,380	ɸ800	1,000	4"–6"	1-1/2"
SCF-80L4	200	900	1,630	ɸ800	1,000	4"–6"	1-1/2"
SCF-90L3	200	700	1,380	ɸ850	1,000	4"–6"	1-1/2"
SCF-90L4	200	900	1,630	ɸ850	1,000	4"–6"	1-1/2"
SCF-100L3	200	700	1,400	ɸ900	1,140	4"–6"	1-1/2"
SCF-100L4	200	900	1,650	ɸ900	1,140	4"–6"	1-1/2"
SCF-120L3	250	800	1,480	ɸ1,000	1,240	4"–6"	1-1/2"
SCF-120L4	250	1,000	1,730	ɸ1,000	1,240	4"–6"	1-1/2"
SCF-140L3	250	800	1,510	ɸ1,100	1,400	4"–6"	2"
SCF-140L4	250	1,000	1,760	ɸ1,100	1,400	4"–6"	2"
SCF-160L3	250	800	1,560	ɸ1,200	1,500	6"–10"	2"
SCF-160L4	250	1000	1,810	ɸ1,200	1,500	6"–10"	2"

SCS-Single Type

Body Material: Stainless steel (SUS304, SUS316L).
Working pressure: 100 PSI.
Operating temperature: 5–40 °C.
Design temperature: 5–90 °C.
Replace pressure: 0.05–0.07 MPa.
Filtration accuracy: 1–100 μm.
Cartridge Quantity: 1 element.
Cartridge filter Length: 10"–40".
Enclosure Type: Clamp.
Port type: Thread.
Surface finish: Sandblast, mirror electrolytic polishing.
Seal type: O-ring or flat washer.
Filter interface: Flat compression, plug-in.
Sealing material:NBR, EPDM, Silicone, Fluoroelastomer optional

Drawings & Dimensions

A drawing of BN7-A/BN7-B series cartridge type stainless steel precision filters.

Table 6: SCS-Single Cartridge Filter Housing
Model	A (mm)	B (mm)	C (mm)	In/Out
SCS-1L1-A	275	355	ɸ89	1/2", 1"
SCS-1L2-A	525	605	ɸ89	3/4", 1"
SCS-1L3-A	775	855	ɸ89	1"
SCS-1L4-A	1,025	1,105	ɸ89	1"

Working Principle

Cartridge filters can accommodate one or more filter cartridges according to the flow rate. The liquid to be filtered enters the interior of the filter from the inlet on one side of the filter. Under the pressure difference between the inlet and outlet of the filter, the liquid enters the outer layer of the filter cartridge, where larger particles are trapped, while smaller particles are captured on the inner layer of the filter material. The filtered clean water flows out through the outlet on the other side of the filter.

Structure

Top cover: Ensures that the filter cartridge and liquid are in a closed state, providing necessary strength and rigidity for the overall structure.
Bolt (quick coupling): Used to fix the top cover of the filter to the housing, ensuring a tight connection between the two and using gaskets to improve sealing performance and disperse pressure.
Sealing ring: Connects the top cover to the housing to prevent liquid leakage from the filter.
Center support rod (multi-element filter): Used in conjunction with the positioning ring to provide necessary support for the filter element and help position the filter element.
Filter element: Filters and separates solid particles, impurities, pollutants, or other suspended substances in the fluid.
Base: Provides stable support for the entire filter, ensuring the overall integrity and stability of the filter during operation.
Housing: Provides protection and support for the filter element, allowing the filter to work effectively.
