High-Flow Stainless Steel Precision Filters – High Fluid Capacity

High-flow stainless steel precision filter is aimed at handling high flow rates to meet large-scale process requirements. The high-flow filter element installed inside the filter usually has a larger filtration area and higher flow capacity, allowing it to handle a large amount of fluid to remove suspended particles, solid particles, impurities, and contaminants, ensuring that the quality of the fluid meets the required standards.

Specification
Working Principle
Structure
Videos

Specification

SCPV-PALL Type Vertical High Flow Cartridge Filter Housing
SCPH-PALL Type Horizontal High Flow Cartridge Filter Housing
SC3MV-3M Type Vertical High Flow Cartridge Filter Housing

SCPV-PALL Type Vertical High Flow Cartridge Filter Housing

Body Material: Stainless steel (SUS304, SUS316L).
Maximum Working Pressure: 150 PSI
Maximum Operating Temperature: 250 °C
Cartridge Quantity: 1 element, 2/3/5 elements
Surface Treatment: Polished or matte (matte sandblasted)

Drawings & Dimensions

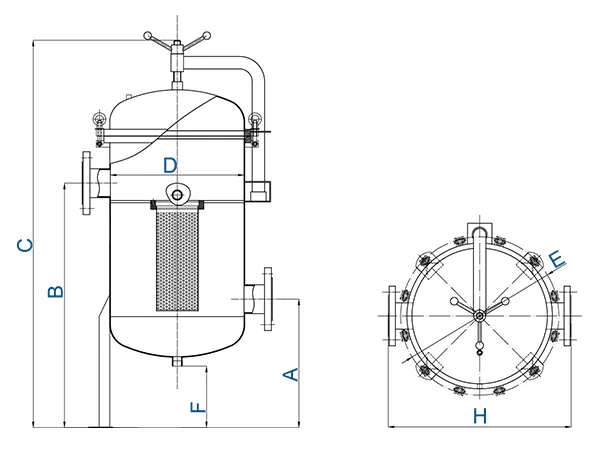

A drawing of BN8 high flow stainless steel precision filter.

Table 1: SCPV-PALL Type Vertical High Flow Cartridge Filter Housing Specification
Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (mm)	In/Out	Drain
SCPV-1L4	330	1370	1600	φ200	315	185	364	3"	1/2"
SCPV-2L4	480	1510	2070	φ450	590	250	655	4"	3/4"
SCPV-3L4	480	1510	2110	φ500	645	230	706	5"	1"
SCPV-4L4	500	1530	2160	φ550	705	230	756	5"	1"
SCPV-5L4	560	1590	2220	φ600	745	265	806	5"	1"
SCPV-6L4	580	1600	2240	φ650	810	260	896	6"	1"
SCPV-7L4	590	1610	2300	φ700	862	230	946	8"	1"
SCPV-8L4	610	1630	2360	φ750	930	240	996	8"	1 1/2"
SCPV-9L4	620	1640	2390	φ800	980	235	1046	8"	1 1/2"
SCPV-10L4	650	1670	2420	φ850	1045	250	1096	8"	1 1/2"

SCPH-PALL Type Horizontal High Flow Cartridge Filter Housing

Material: SUS304, SUS316L
Maximum Working Pressure: 150 PSI
Maximum Operating Temperature: 250 °C
Cartridge Quantity: 1 element, 2/3/5 elements
Surface Treatment: Polished or matte (matte sandblasted)

Drawings & Dimensions

A drawing of BN9 high flow stainless steel precision filter.

Table 2: SCPH-PALL Type Horizontal High Flow Cartridge Filter Housing Specification
Model	A (mm)	B (mm)	C (mm)	D (mm)	In/Out	Drain
SCPH-1L4	350	530	1270	φ200	2" – 3"	1/2"
SCPH-2L4	500	960	1670	φ450	3" – 4"	1"
SCPH-3L4	580	1070	1810	φ500	4" – 6"	1"
SCPH-4L4	600	1110	1850	φ550	4" – 6"	1"
SCPH-5L4	630	1170	1800	φ600	5" – 6"	1"
SCPH-6L4	660	1230	1820	φ650	5" – 6"	1"
SCPH-7L4	690	1280	1840	φ700	6" – 8"	1"
SCPH-8L4	720	1360	1860	φ750	6" – 8"	1 1/2"
SCPH-9L4	750	1410	1880	φ800	6" – 8"	1 1/2"
SCPH-10L4	780	1470	1910	φ850	6" – 8"	1 1/2"

SC3MV-3M Type Vertical High Flow Cartridge Filter Housing

Material: SUS304, SUS316L
Maximum Working Pressure: 150 PSI
Maximum Operating Temperature: 250 °C
Cartridge Quantity: 1 element, 2/3/4/6/7/8/10/13/18 elements,etc.
Surface Treatment: Polished or matte (matte sandblasted)

Drawings & Dimensions

A drawing of BN10 high flow stainless steel precision filter.

Table 3: SC3MV-3M Type Vertical High Flow Cartridge Filter Housing Specification
Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (mm)	In/Out	Drain
SC3MV-1L4	300	800	1,550	ɸ250	370	150	410	2"–3"	1/2"
SC3MV-2L4	390	1,000	1,900	ɸ400	530	190	600	4"–5"	3/4"
SC3MV-3L4	460	1,100	1,990	ɸ450	590	250	650	4"–5"	3/4"
SC3MV-4L4	480	1,100	2,050	ɸ500	645	230	740	5"–6"	1"
SC3MV-6L4	500	1,100	2,080	ɸ550	705	240	790	5"–6"	1"
SC3MV-7L4	560	1,200	2,160	ɸ600	745	290	840	5"–6"	1"
SC3MV-8L4	580	1,200	2,190	ɸ650	810	300	890	5"–6"	1"
SC3MV-10L4	610	1,250	2,260	ɸ750	930	290	990	6"–8"	1-1/2"
SC3MV-13L4	620	1,250	2,300	ɸ800	980	270	1,040	6"–8"	1-1/2"
SC3MV-18L4	670	1,350	2,380	ɸ900	1,115	290	1,140	6"–8"	1-1/2"

Working Principle

The high flow stainless steel precision filter can accommodate one or more filter cartridges based on the flow rate. The liquid to be filtered enters the interior of the filter from the inlet of the filter. Under the pressure difference between the inlet and outlet of the filter, the liquid enters the outer layer of the filter cartridge. Larger particles are trapped in the outer layer of the filter cartridge, while smaller particles are captured on the inner layer of the filter cartridge. The filtered clean water flows out through the outlet of the filter.

Structure

Top cover: Ensures that the filter cartridge and liquid are in a closed state, providing necessary strength and rigidity for the overall structure.
Bolts: usually used in conjunction with nuts to fix the top cover of the filter to the housing, ensuring a tight seal between the two and using washers to improve sealing performance and disperse pressure.
Sealing ring: Connects the top cover to the housing to prevent liquid leakage from the filter.
Center support rod (multi-element filter): Used in conjunction with the positioning ring to provide necessary support for the filter element and help position the filter element.
High Flow Filter Element: effectively removes impurities from the medium flowing through while maintaining a high processing capacity.
Filter Element Seat: provides a sturdy support to ensure that the filter element does not shift even under high flow rate and pressure.
Housing: Provides protection and support for the filter element, allowing the filter to work effectively.
