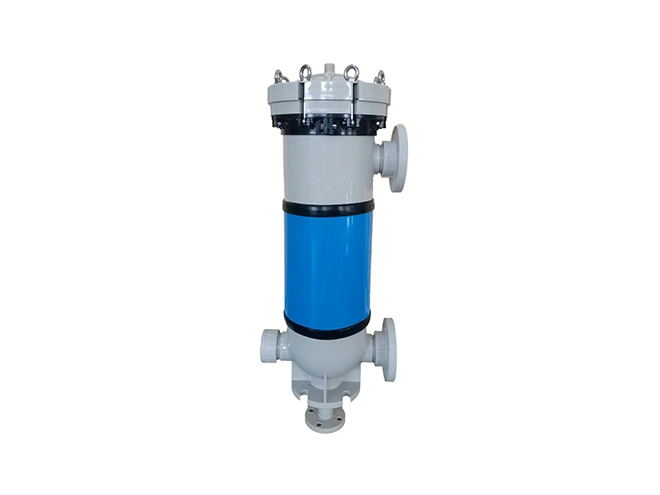

A resin trap made of PP material

Lightweight & Efficient PP Resin Trap

The PP resin trap is mainly installed on the water system pipeline at the outlet of equipment containing resin like ion exchangers. When the nozzle or the water distributor are damaged, resulting in the leakage of resin passing through, it can be intercepted and captured by the resin trap to avoid affecting the downstream system.

The resin trap is made of Polypropylene (PP) can be acid and alkali resistant, corrosion resistant, high temperature resistant, usually used in industries such as softened water, fermentation industry, chemical industry, the extraction of lithium from the salt lake brine etc.

  • Specification
  • Video
Specification

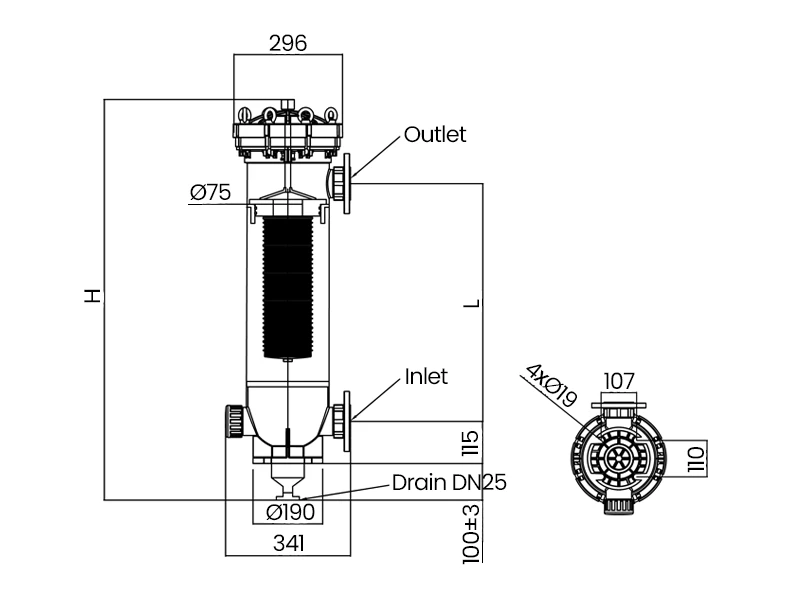

Dimension diagram of pp resin trap with annotations
Table 1: PP Resin Trap Specification
Model Material Housing Size
(mm)
Inlet Height L
(mm)
Inlet & Outlet
(mm)
Drain
(mm)
Max. Pressure Reference Volume
(T/H)
SW-HPRT-50 PP φ225-H950 500 FLG: DN50 FLG: DN25 0.8 MPA (116 PSI) 10–20
SW-HPRT-80 φ225-H1110 650 FLG: DN80 FLG: DN25 20–40
Note: Filtration precision ≤ 0.25 mm, customized filtration precision is also available.
